Custom Pricing Available
This item requires a custom quote. Please contact us for pricing and availability.

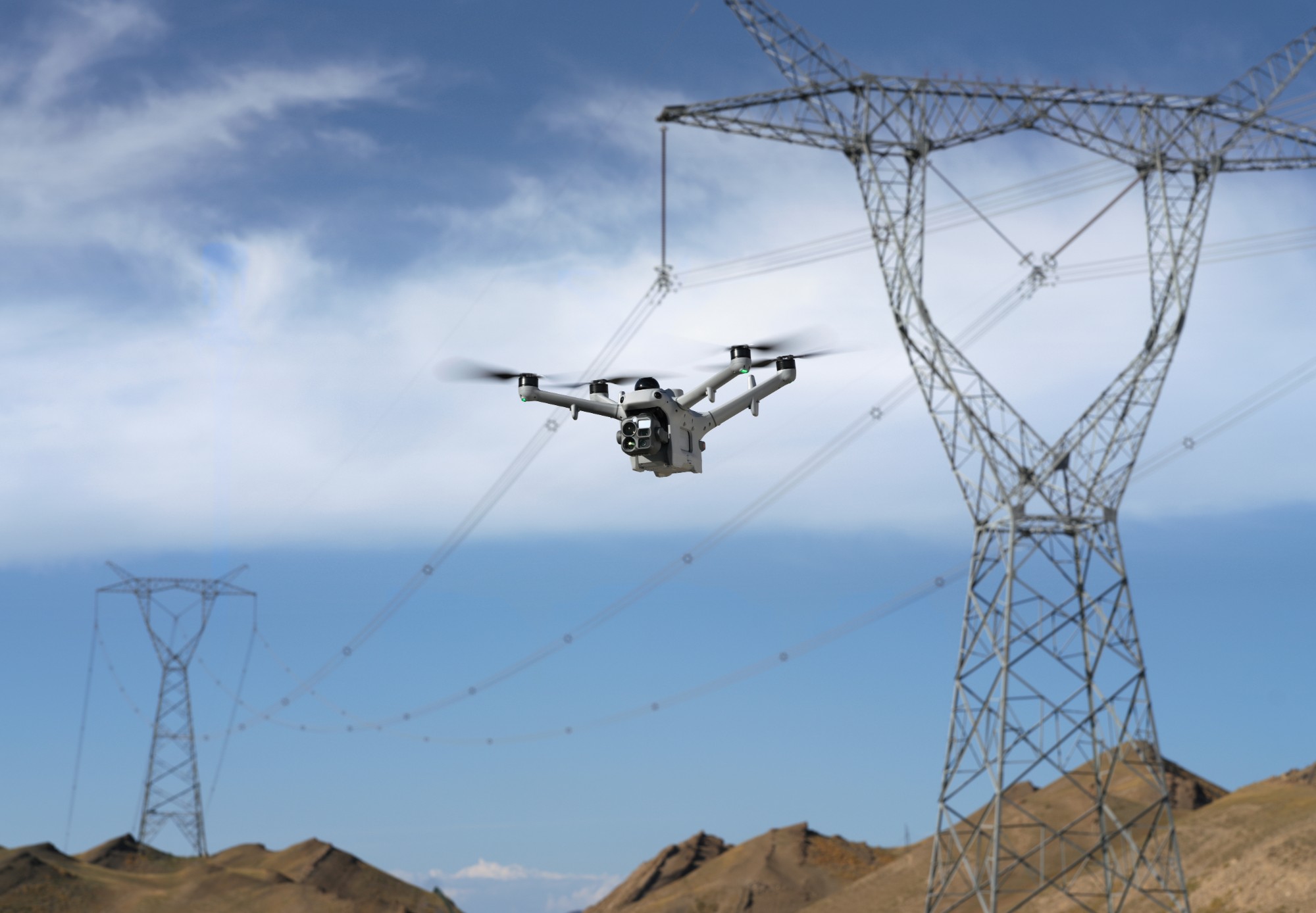

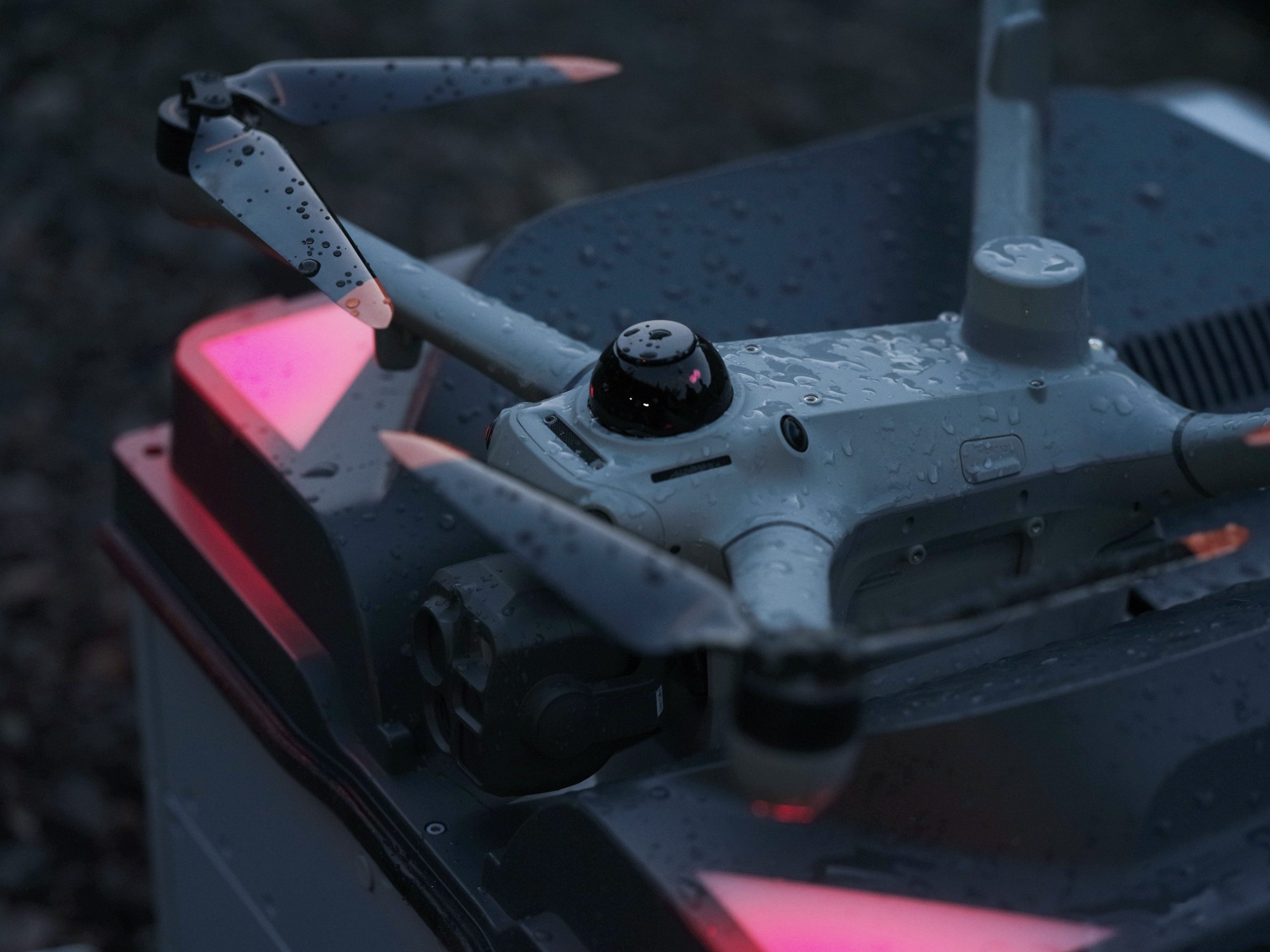

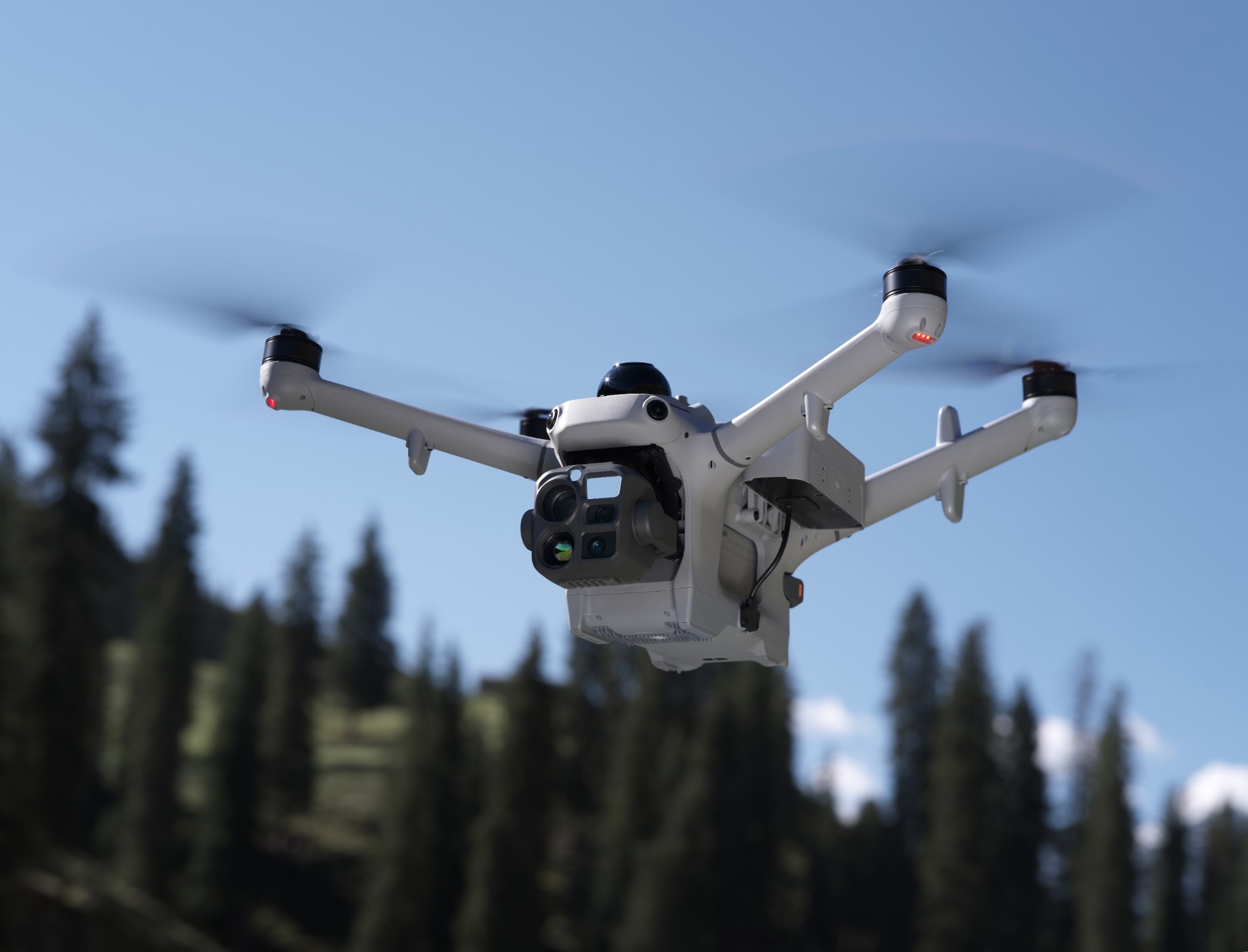

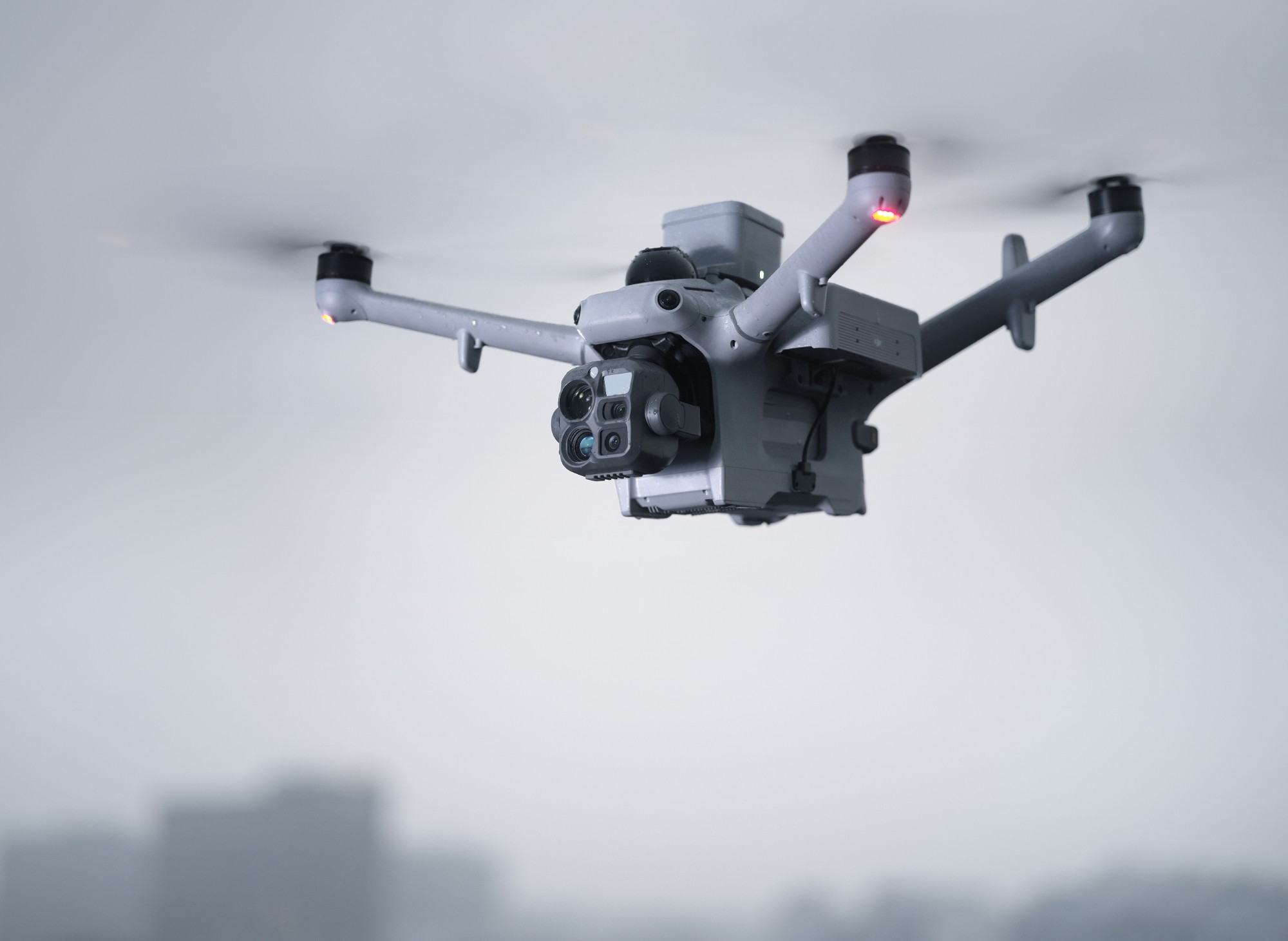

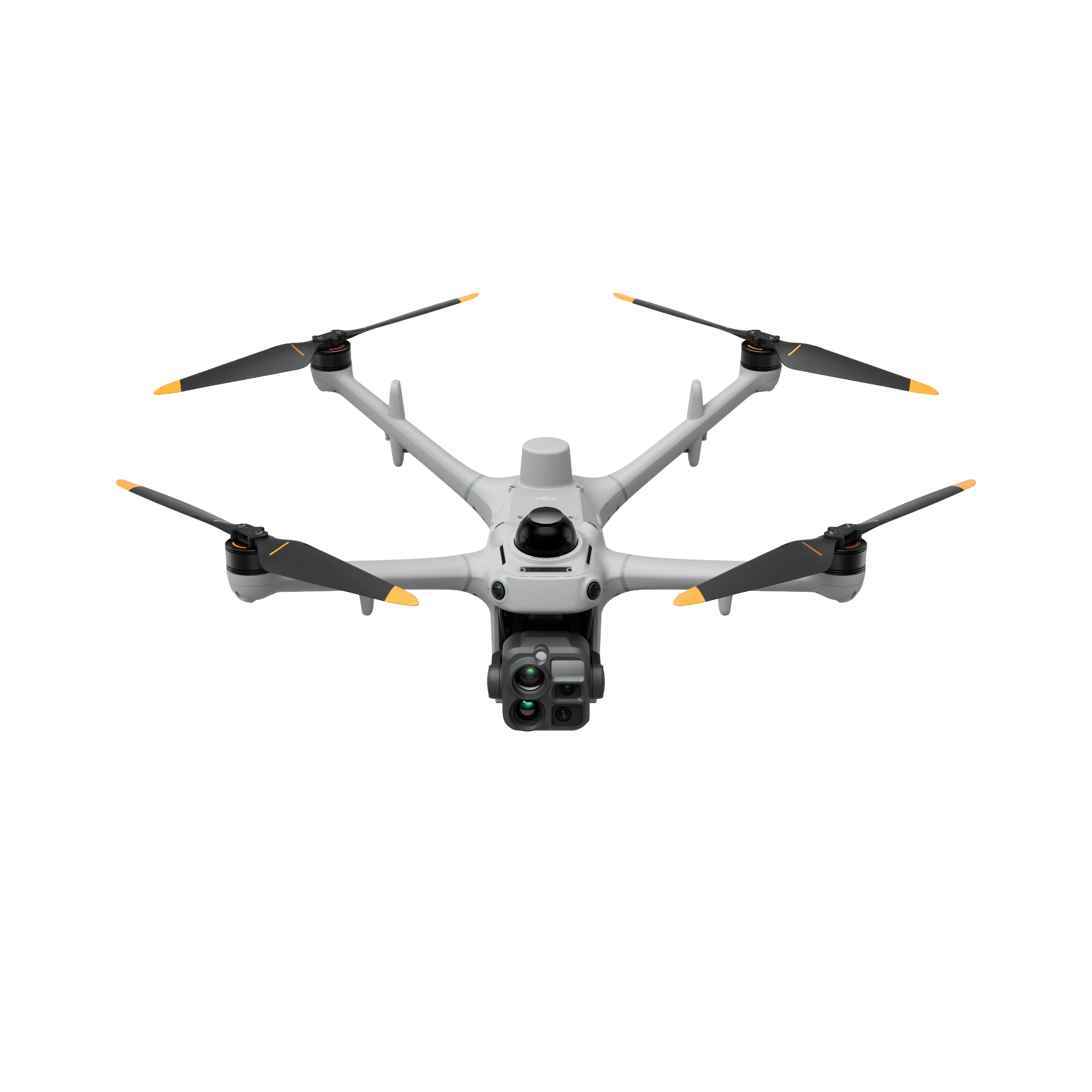

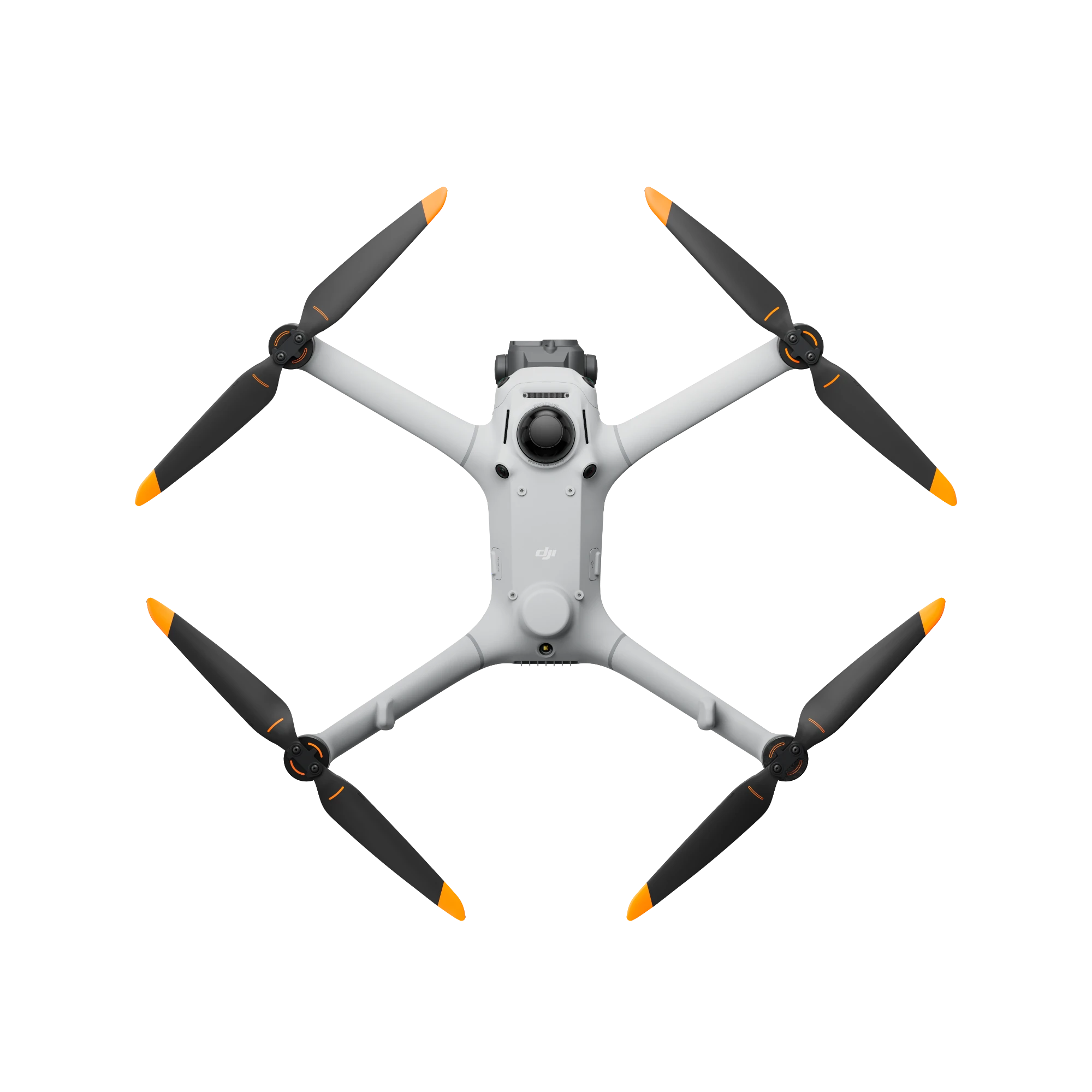

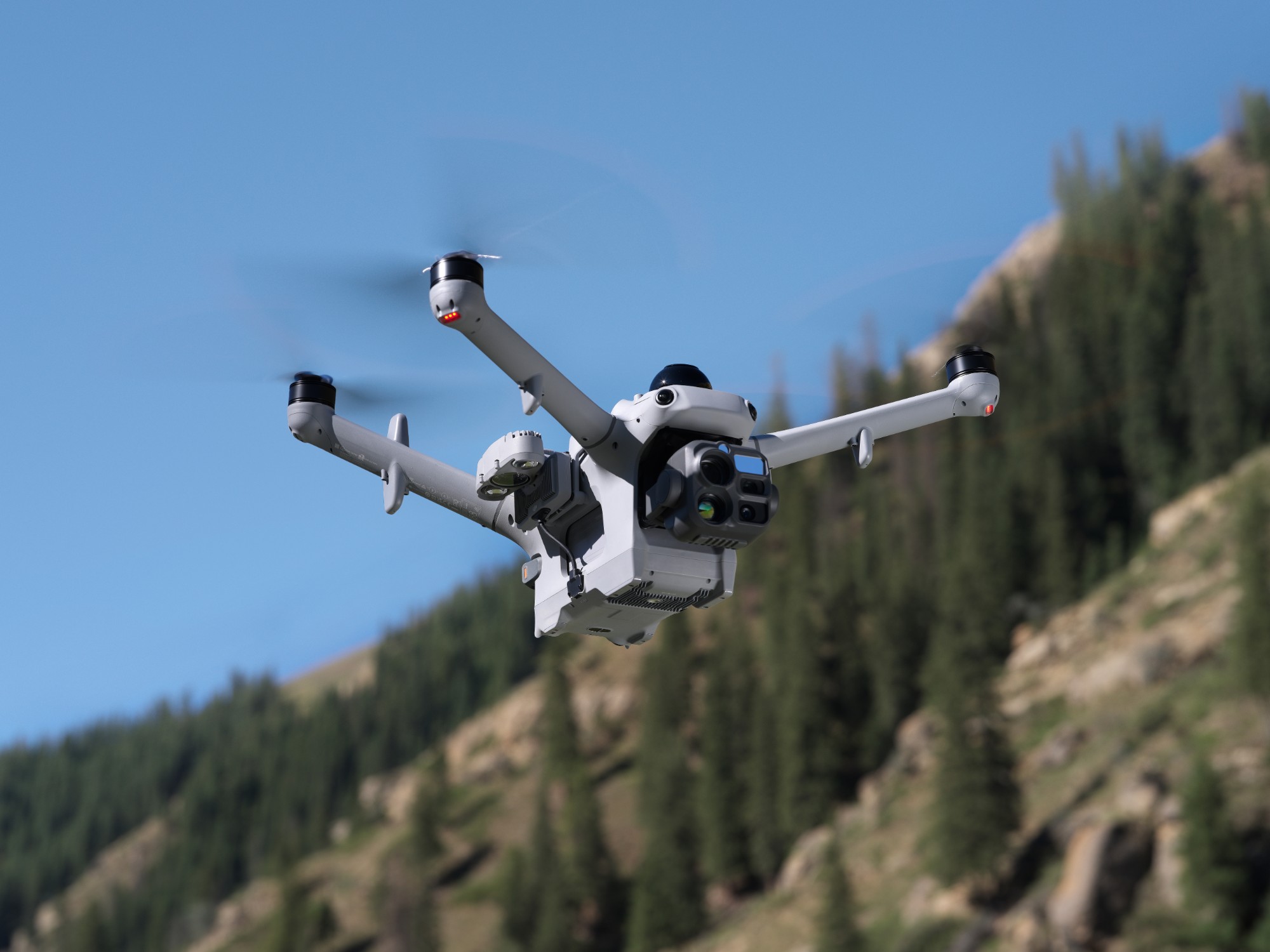

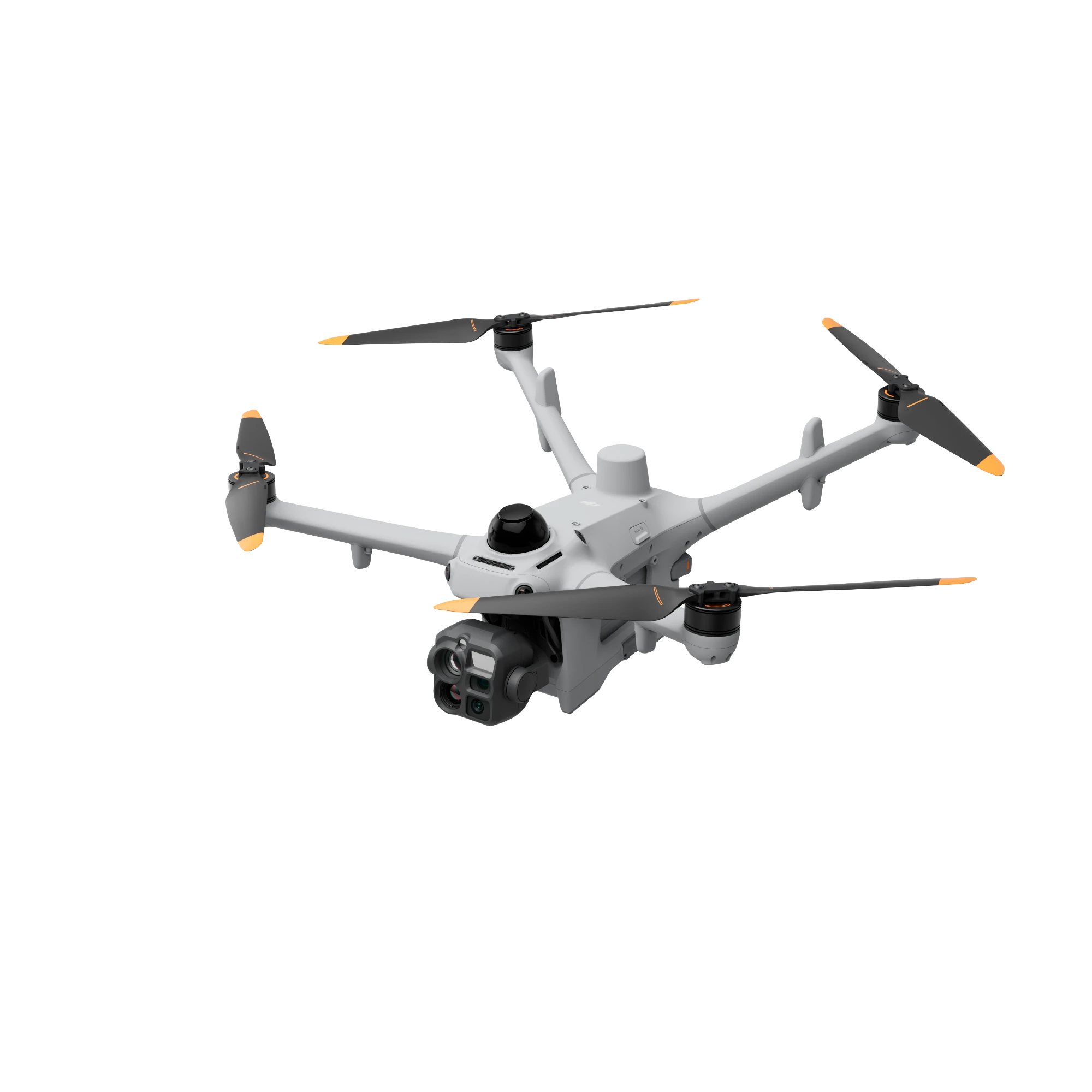

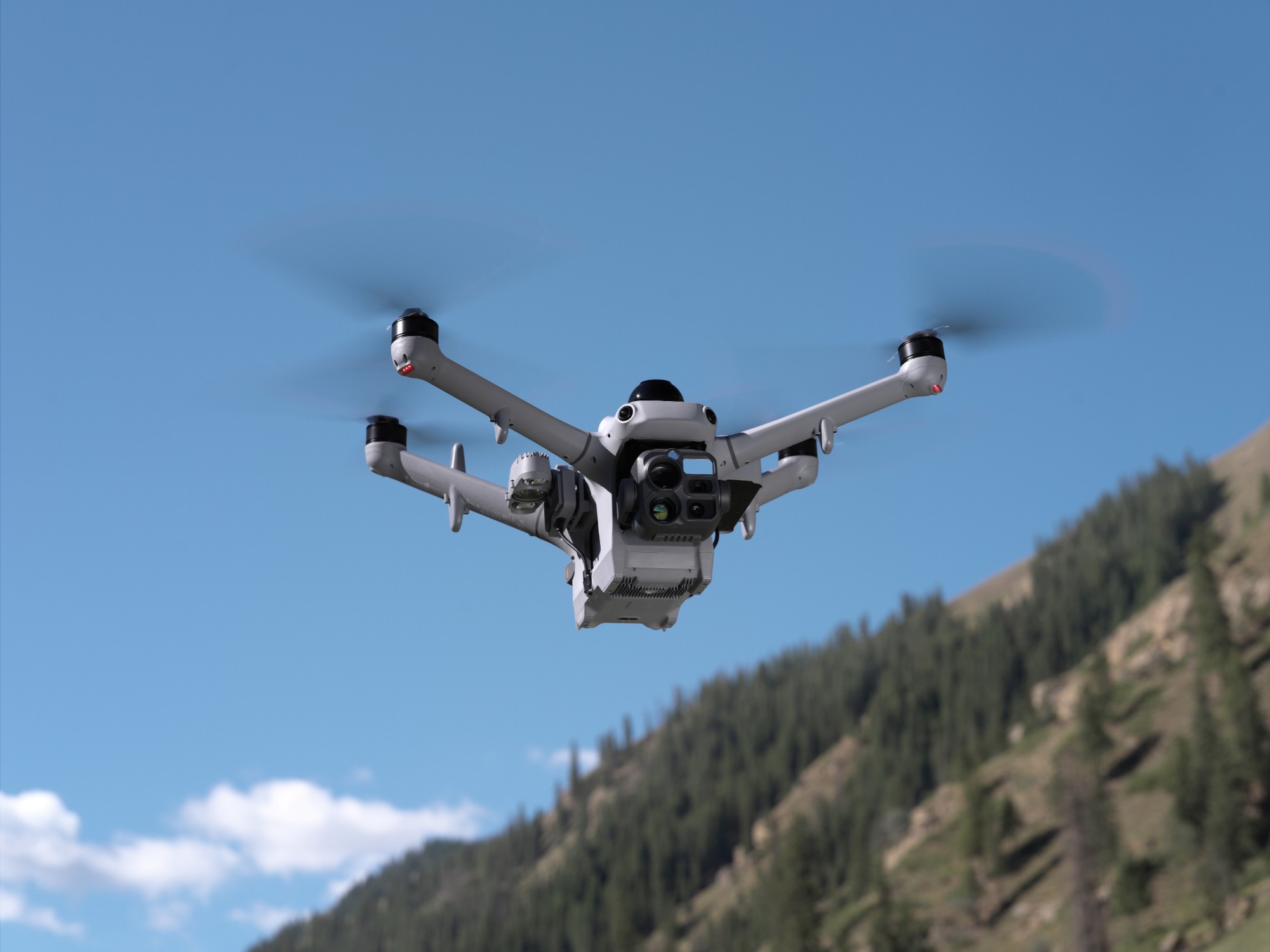

The DJI Matrice 5TD is a dock-exclusive enterprise drone featuring a triple 50MP camera array, a 1280×1024 thermal sensor, and a 3km laser rangefinder, engineered specifically for fully automated, 24/7 operations from the DJI Dock 4.
Device Type: Enterprise Quadcopter Drone (Dock-Exclusive)
Model Number: M5TD
Compatible Dock: DJI Dock 4 (exclusively; no standalone operation)
Weight: 2,600 g (empty); 3,050 g (maximum take-off weight)
Wheelbase: 549 mm
Maximum Flight Time: 59 minutes
Maximum Flight Distance: 53 km
Maximum Horizontal Speed: 21 m/s
Integrated Payload:
Wide-Angle Camera: 50 MP, 1/0.98-inch CMOS
Medium Telephoto Camera: 50 MP, 1/1.28-inch CMOS
Super Telephoto Camera: 50 MP, 1/1.5-inch CMOS; 16x digital zoom, up to 176x hybrid zoom
Thermal Camera: 1280 × 1024 native resolution; 2560 × 2048 Super Resolution; 32x zoom
Laser Rangefinder: Up to 3,000 m range
Near-Infrared Laser Illuminator: Yes
Obstacle Sensing: Colour vision, LiDAR, 3D IR, and millimetre-wave radar; detects wires as thin as 11 mm
Onboard AI Recognition: 17 target types (including people, vehicles, fire, and smoke)
Ingress Protection Rating: IP55
Operating Temperature: -40°C to 50°C
Payload Capacity: 450 g; supports up to 3 accessories simultaneously (e.g., speaker, searchlight, parachute)
Integrated Parachute: Yes (AP1 Parachute pre-installed)
Transmission: DJI O4 Enterprise Enhanced; IC: 40 km, SRRC: 25 km, CE/MIC: 12 km
Max Download Speed: 20 MB/s (O4 link); 80 MB/s (WiFi)
