Custom Pricing Available
This item requires a custom quote. Please contact us for pricing and availability.

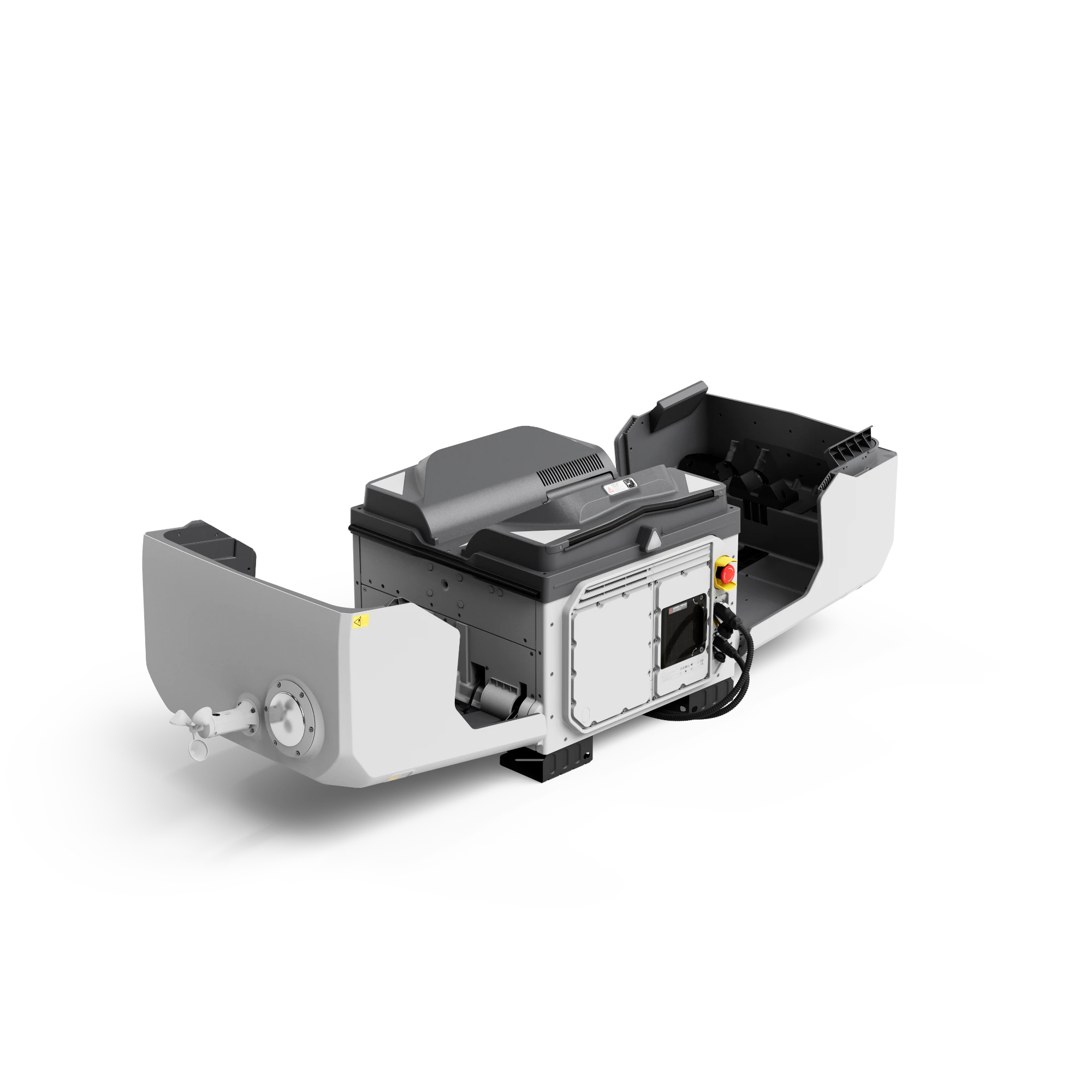

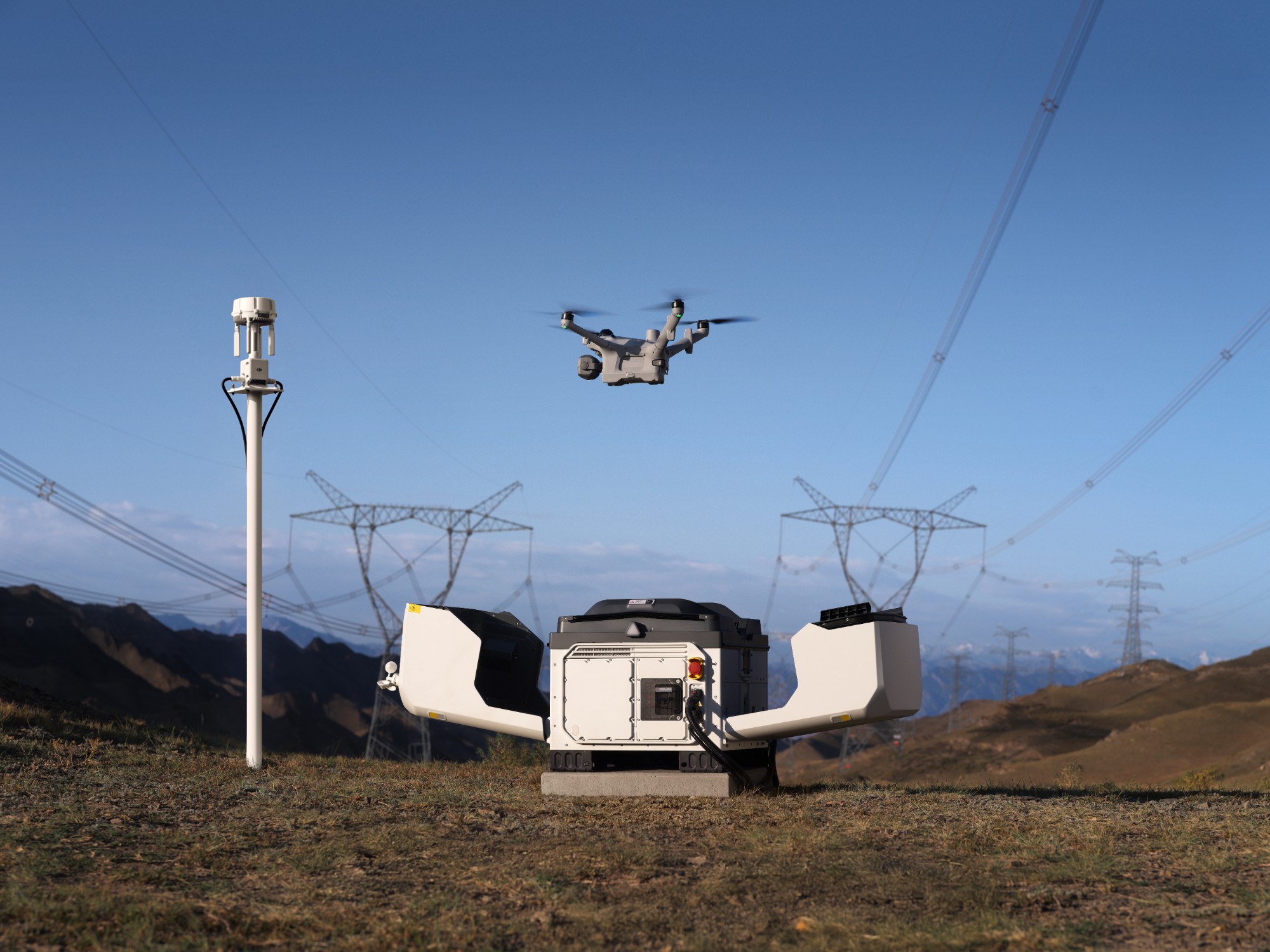

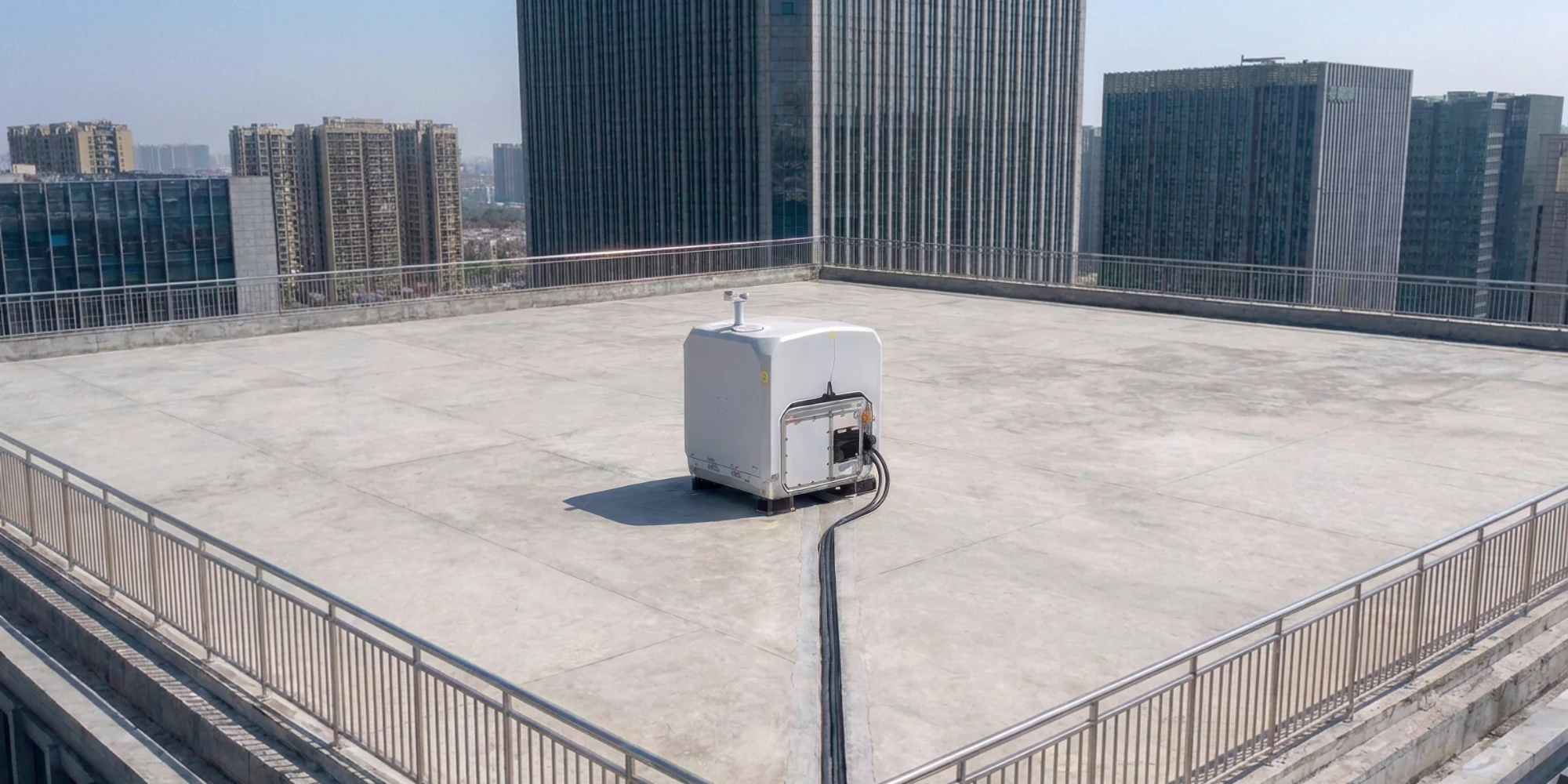

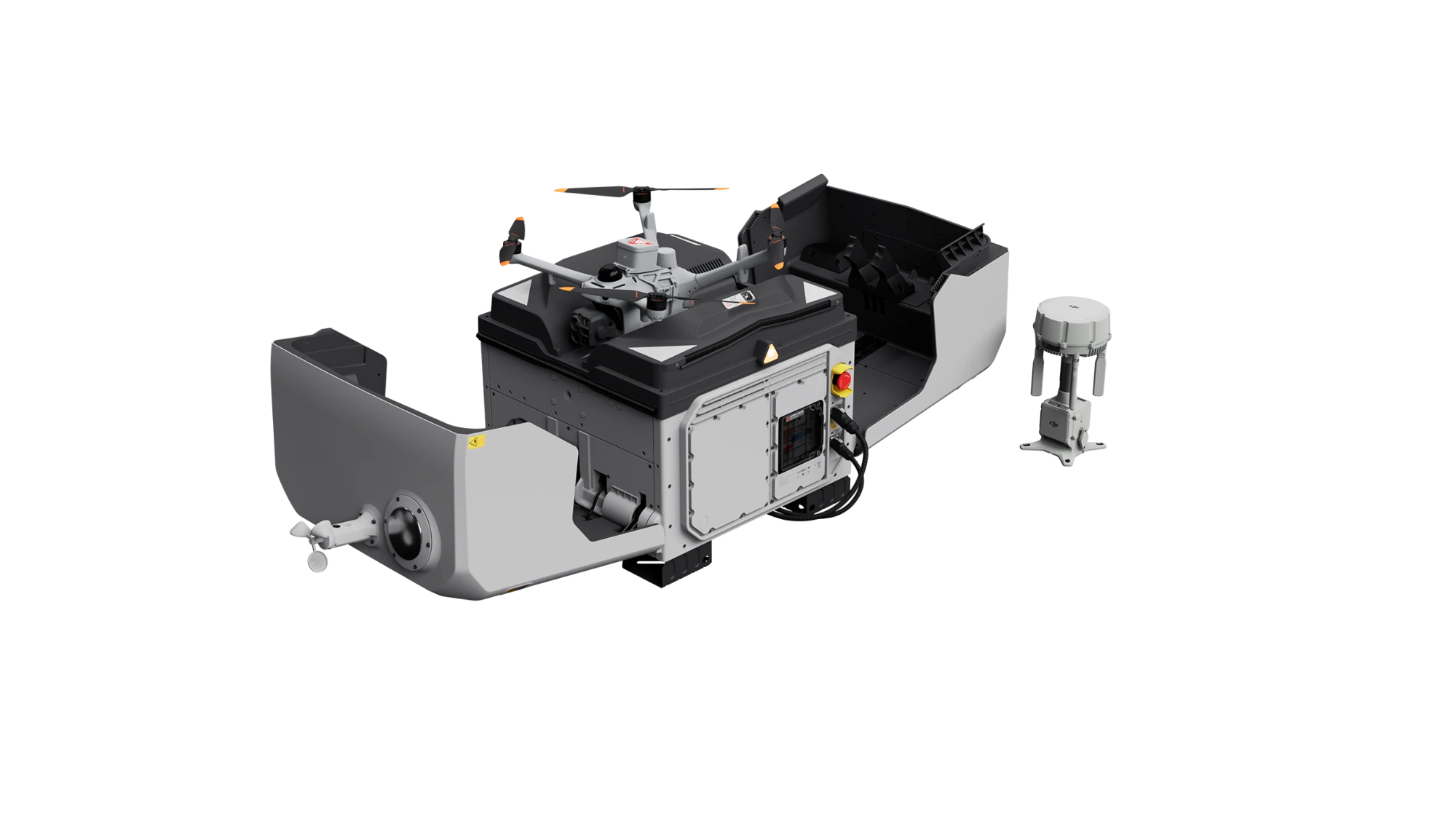

The DJI Dock 4 is an automated drone-in-a-box station that swaps batteries in 25 seconds for 24/7 operations, paired with the Matrice 5TD aircraft for rapid-response aerial missions.
Device Type: Automated Drone Dock / Drone-in-a-Box Station

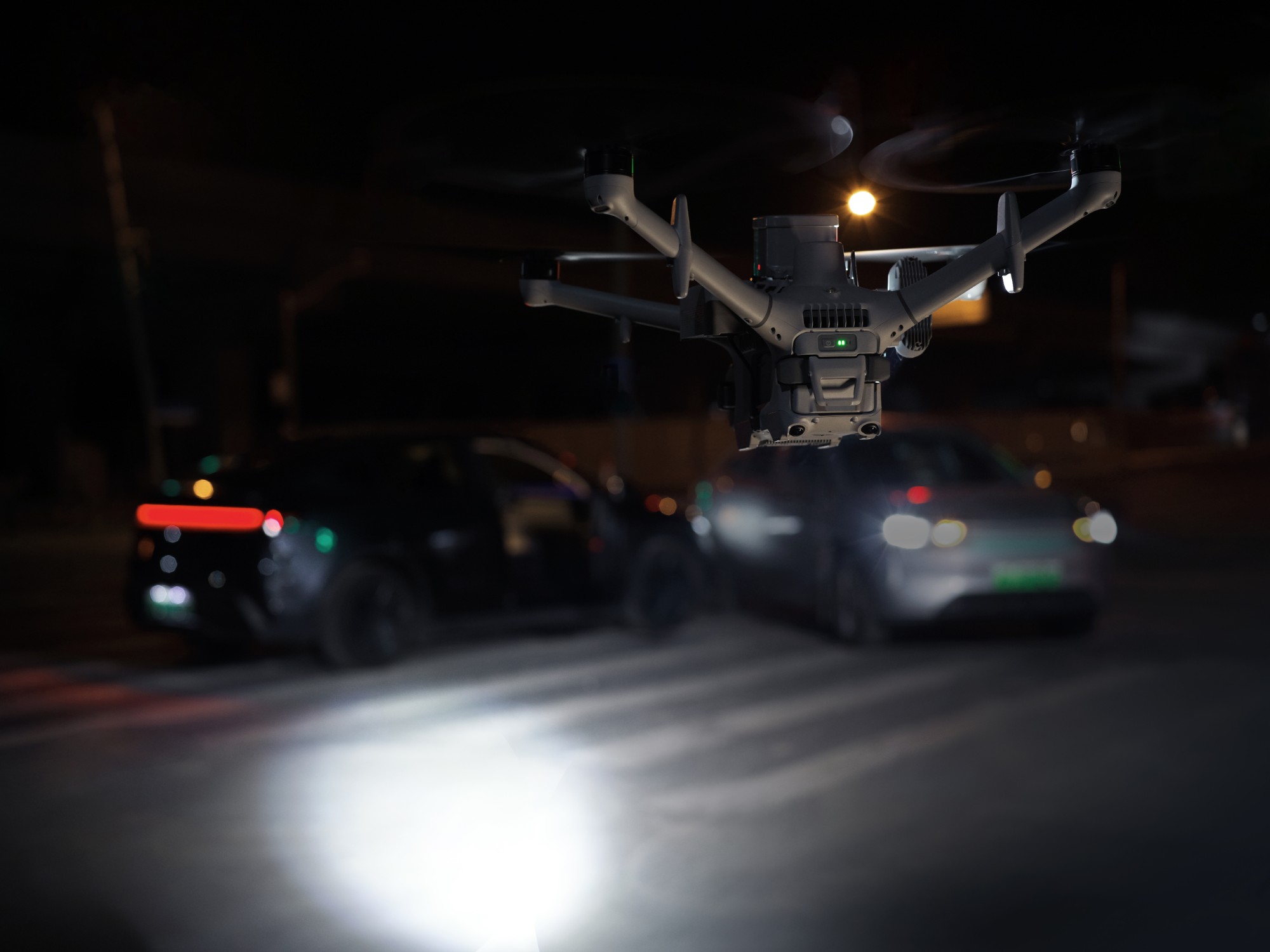

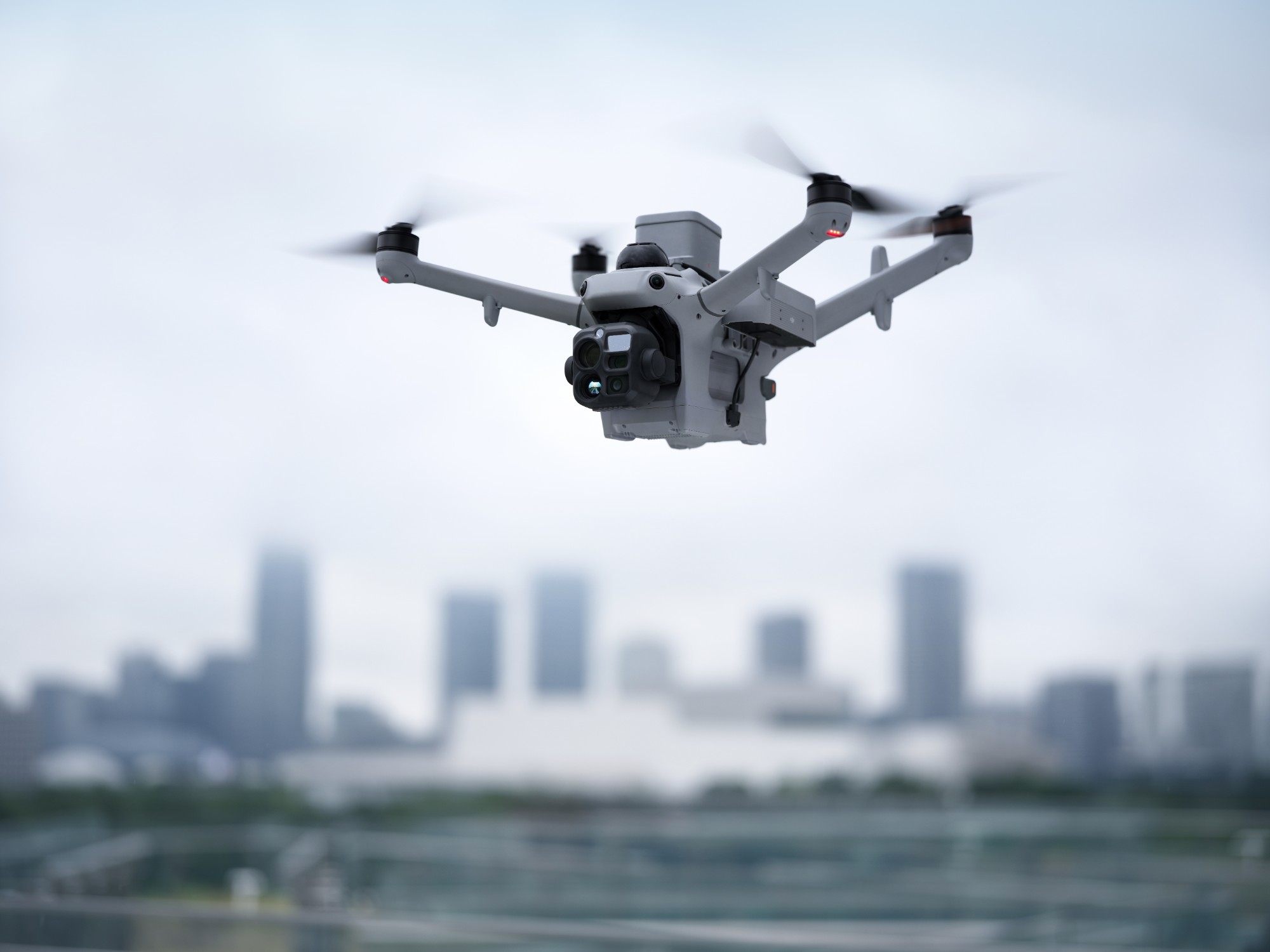

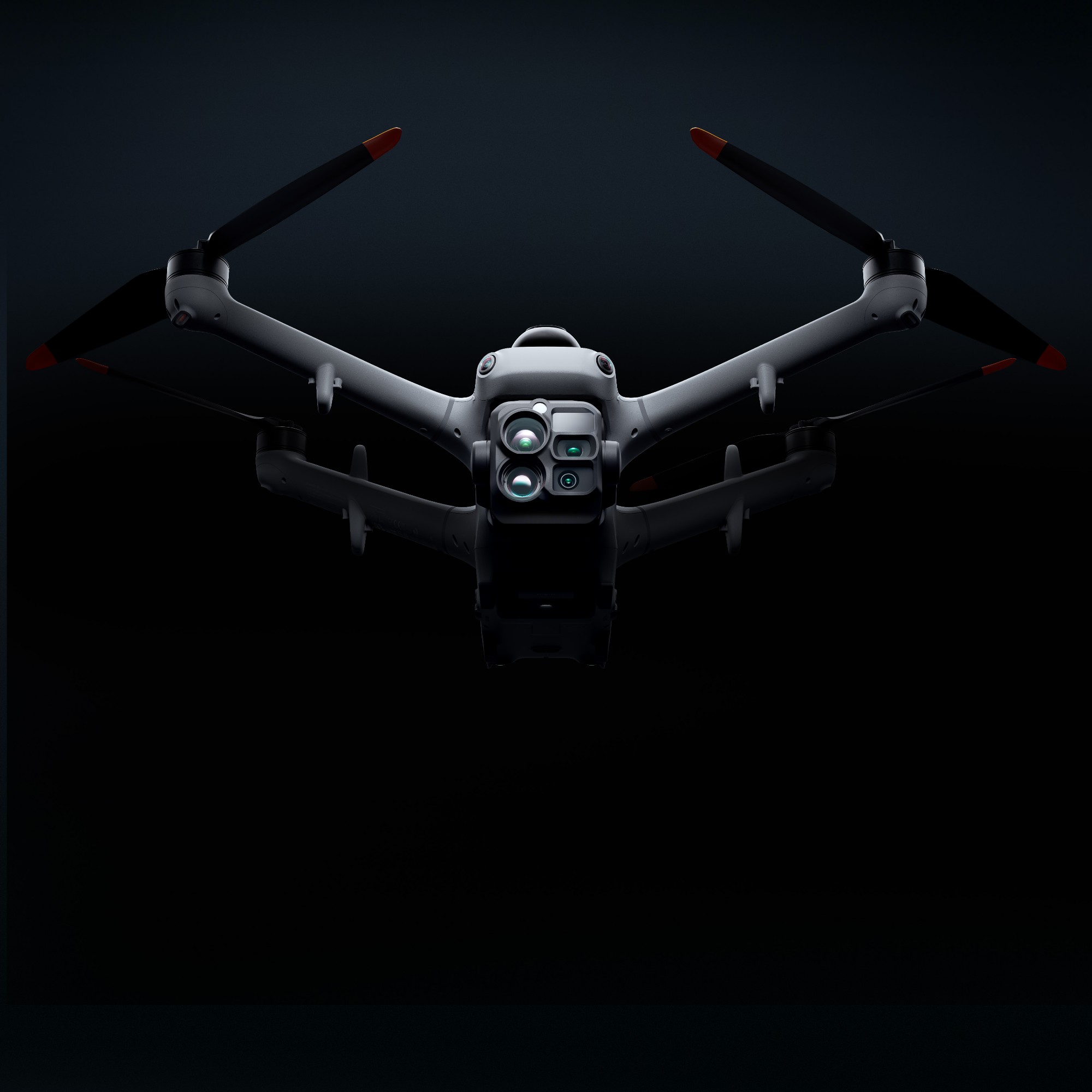

Compatible Aircraft: DJI Matrice 5TD
Total Weight: 66 kg (without batteries in the battery compartment, aircraft not included)
Dimensions: 1750 × 640 × 550 mm (L×W×H, Dock Cover Opened); 639 × 640 × 836 mm (L×W×H, Dock Cover Closed)
Input Voltage: 100-240 V (AC), 50/60 Hz
Input Power: Max 2000 W
Operating Temperature: -40° to 50° C (-40° to 122° F)
Ingress Protection Rating: IP56
Max Operating Altitude: 5000 m
Battery Swap Time: < 25 seconds (cover closed to swap completion)
Operational Turnaround Time: < 45 seconds (landing to next takeoff)
Max Number of Batteries Stored: 3 (across 4 compartments)
Per-Battery Charging Time: 27 minutes (15% to 95%)
Video Transmission: DJI O4 Enterprise Enhanced, supported via DJI O4 Ground Station
Drone-to-Cloud Latency: Approx. 160 ms (down 43% from previous generation)
RTK Base Station: Supported via DJI O4 Ground Station
Backup Battery Capacity: 12138 mAh, 21.42 V, LiNiMnCoO2
Backup Battery Life: Approx. 4.5 hours per battery
Air Conditioning: Compressor-based, 48 V DC
