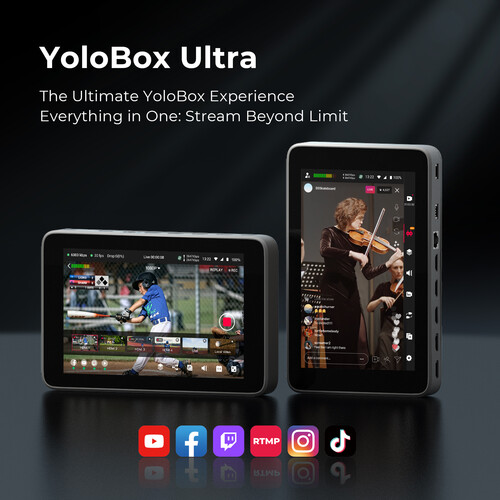

Create a live stream production from anywhere with the YoloBox Ultra from YoloLiv, which functions as a portable multicamera encoder, streamer, switcher, monitor, and recorder all in one device. Broadcast simultaneous UHD 4K video streams via Wi-Fi 6, RJ45 Ethernet, USB-C modem, or 4G LTE with a SIM card and subscription. The Ultra features four HDMI, one USB-C, and two USB-A inputs to connect to multiple cameras or devices. An integrated Qualcomm CPU 865 improves live streaming performance and a 650 cd/m² brightness LCD touchscreen improves visibility. The Ultra can stream for up to 8 hours at a time thanks to the built-in 6800mAh battery.
v1.40 Update
- Now supports ISO recording for HDMI, USB, NDI, and SRT inputs
- Connect up to three NDI inputs with H.265 encoding
- Support for streaming in 2K
Horizontal and Vertical Live Streaming Orientations
Taking features from the YoloBox Pro and Instream, the Ultra is capable of live streaming in both horizontal and vertical orientations. Horizontal steaming supports up to three simultaneous destinations up to 4K while vertical streaming supports up to two simultaneous destinations. The Ultra live streams via RTMP, RTMPS, MJPEG, NDI, and SRT protocols for compatibility with popular platforms like YouTube, Facebook, Twitch, Instagram, and TikTok. Third-party apps can even be directly installed to the monitor.
Improved Processing Power
An integrated Qualcomm CPU 865 processor maintains clear live streams with minimal delays and optimal visual quality. The processor delivers 2.5x CPU performance and 4x GPU performance with 8GB of RAM and 128GB of ROM.
Comprehensive Video Functions
Capture
- ISO recordings capture all video inputs as well as program video and save them as separate files. Adjust the resolution, frame rate, and bitrate of each recording as needed.
- The Ultra can stream and record content simultaneously. Encode your video and audio and save it to your inserted SD card or portable SSD when the recording feature is enabled.
Switch
- Auto-switching selects video sources and duration and automatically switches between them for single-person, multicamera productions.
- Video transitions like cut, fade, wipe, and zoom make for more visually engaging switches between sources.
- Multiple multiview layouts are available to choose from, including Picture in Picture, Side by Side, Split View, News Layout, and Triple.
- Built-in chroma key adds different backgrounds to your live production.
- Invite up to five guests to join your stream to create collaborative, remote sessions.
Monitor
- Graphic overlays like images, lower thirds, scoreboards, countdown timers, web URL overlays, and other brand-specific files add a professional flair.
- Import PNG, JPG, and GIF graphics.
Wide Device Connectivity

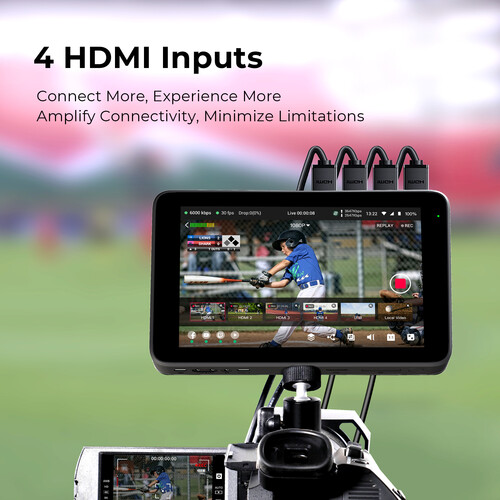

Capture video from up to four HDMI input sources like DSLR or mirrorless cameras, three USB input sources like webcams or document cameras, and output that video to your personal computer or monitor. Switch between 10 or more video sources with ease. Record video onto an SD card or stream it via connected Wi-Fi dongle. Integrated 3.5mm microphone and line inputs can be mixed with the onboard audio mixing interface.
Cellular Bonding Interface
Wi-Fi 6, RJ45 Ethernet, USB-C modem, and 4G LTE connectivity on the Ultra allow you to facilitate cellular bonding. With the purchase of a separately available SIM card and the YoloLiv Network Bonding subscription, your Ultra unlocks global internet connectivity wherever you choose to stream.
