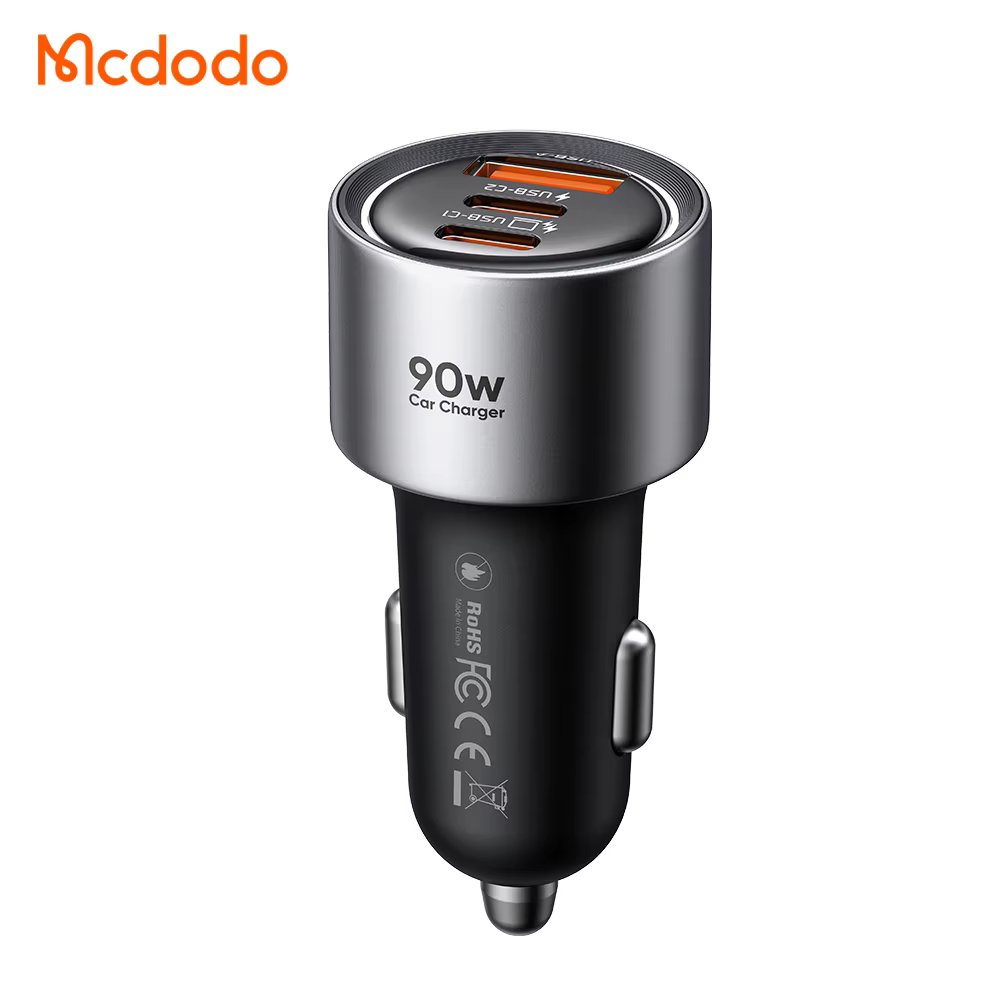

The Mcdodo CC-311 Gana is a 90W three-port car charger with a 2x USB-C and 1x USB-A configuration, designed to fast-charge laptops, tablets, and smartphones simultaneously.
Device Type: 90W Triple-Port Fast Car Charger
Model Number: CC-311
Series: Gana Series
Chassis Material: Durable aluminum alloy combined with heat-resistant PC and ABS plastic.
Total Output Power: 90W Max.
Output Ports:
USB-C1/C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A (45W Max each).
USB-A: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A (45W Max).
Simultaneous Output Distribution:
USB-C1 + USB-C2: 45W + 45W (90W Max).
USB-C2 + USB-A: 5V⎓3.4A (17W Max).
USB-C1 + (USB-C2 + USB-A): 45W + 17W (62W Max).
Input Voltage: DC 12-24V, 5.4A (compatible with standard cars and heavy-duty trucks).
Charging Protocols: Supports a wide range of fast-charging protocols including PPS, PD3.0, QC3.0, AFC, FCP, SCP, and Samsung SFC 2.0 for cross-brand compatibility.
Safety & Stability: Equipped with a smart chip and time-gain compensation circuitry to prevent voltage surges, overheating, short circuits, and battery damage during engine starts.
Ergonomic Design: Features lateral stabilizing levers to prevent the charger from loosening or wobbling inside the cigarette lighter socket while driving.
Certifications: CE, RoHS, and FCC safety certified.
Dimensions & Weight: 68.25 x Φ33.8 mm; lightweight at 35 grams (1.23 oz).
