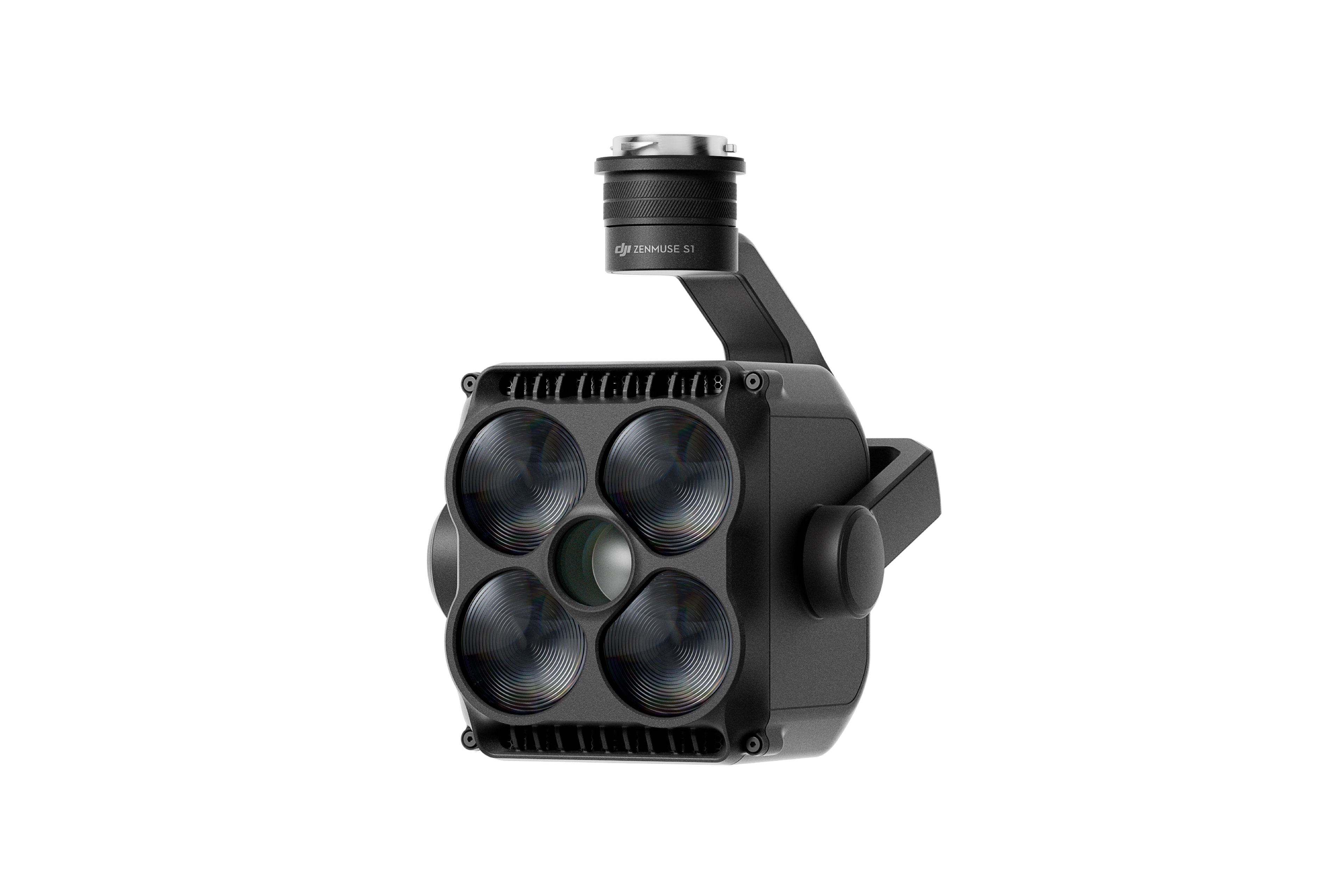

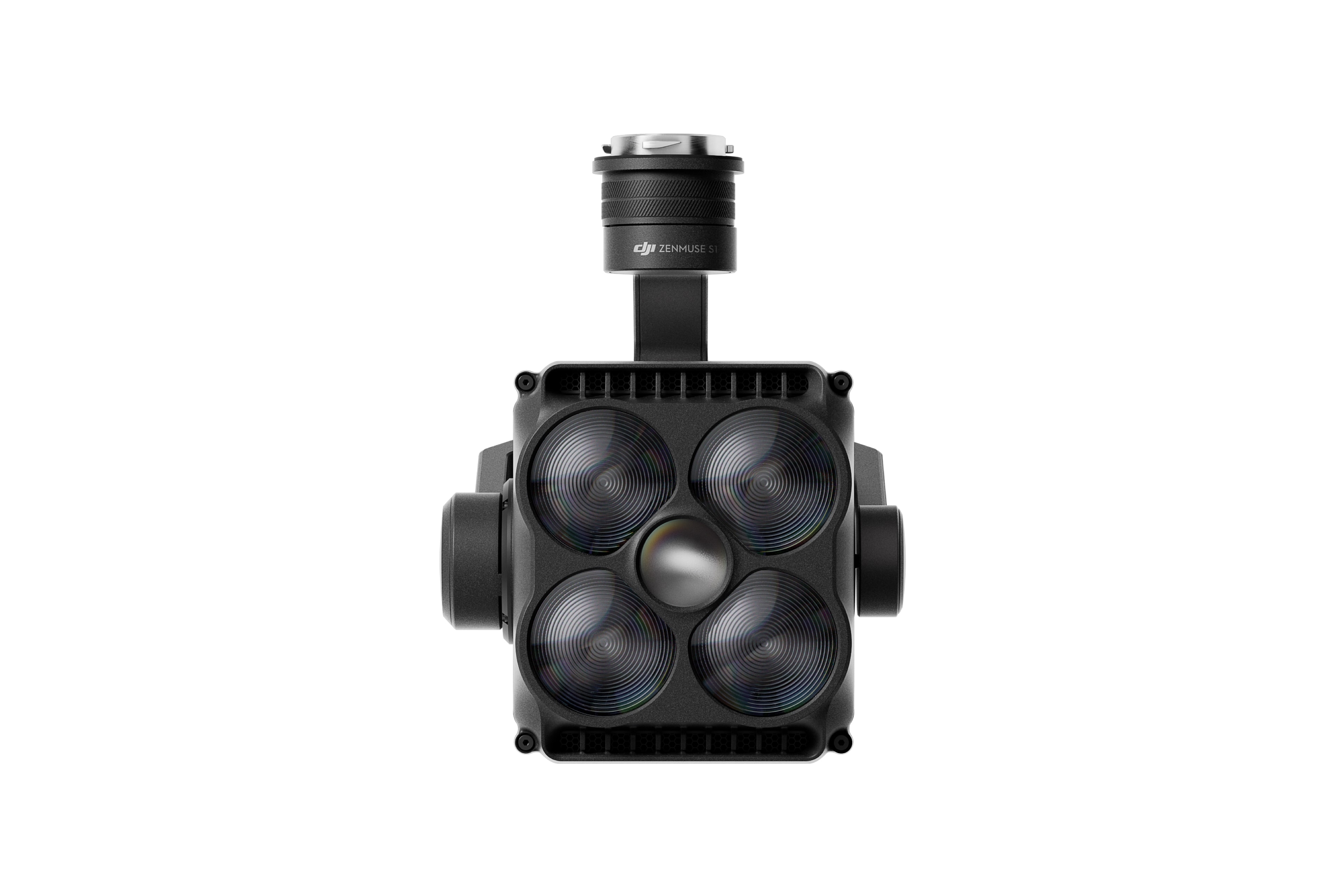

Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.
1. Download and read the safety guidelines and user manual from the DJI official website before using for the first time.
2. Using the spotlight at night may result in obstacle avoidance errors. You can disable obstacle avoidance as needed and operate the aircraft and spotlight in relatively open and spacious areas.
3. When using Zenmuse S1, do not look directly at the spotlight from a close distance to avoid potential harm. Please ensure safety.
4. Do not touch the spotlight lens coating directly with your hands or scratch it with hard objects, as this may reduce light output efficiency and affect luminous flux and illuminance.
Weight: 760±10 g
Dimensions: 125×152×171 mm (L×W×H)
Rated Power: 68 W
Maximum Central Illuminance: 35 lux@100 m (Both On mode) [1]
Effective Illumination Distance: 500 m (Both On mode) [2]
Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK
Ingress Protection Rating: IP54 [3]
Operating Temperature: -20° to 40° C (-4° to 104° F)
DJI Matrice 400
Matrice 350 RTK
Matrice 300 RTK
