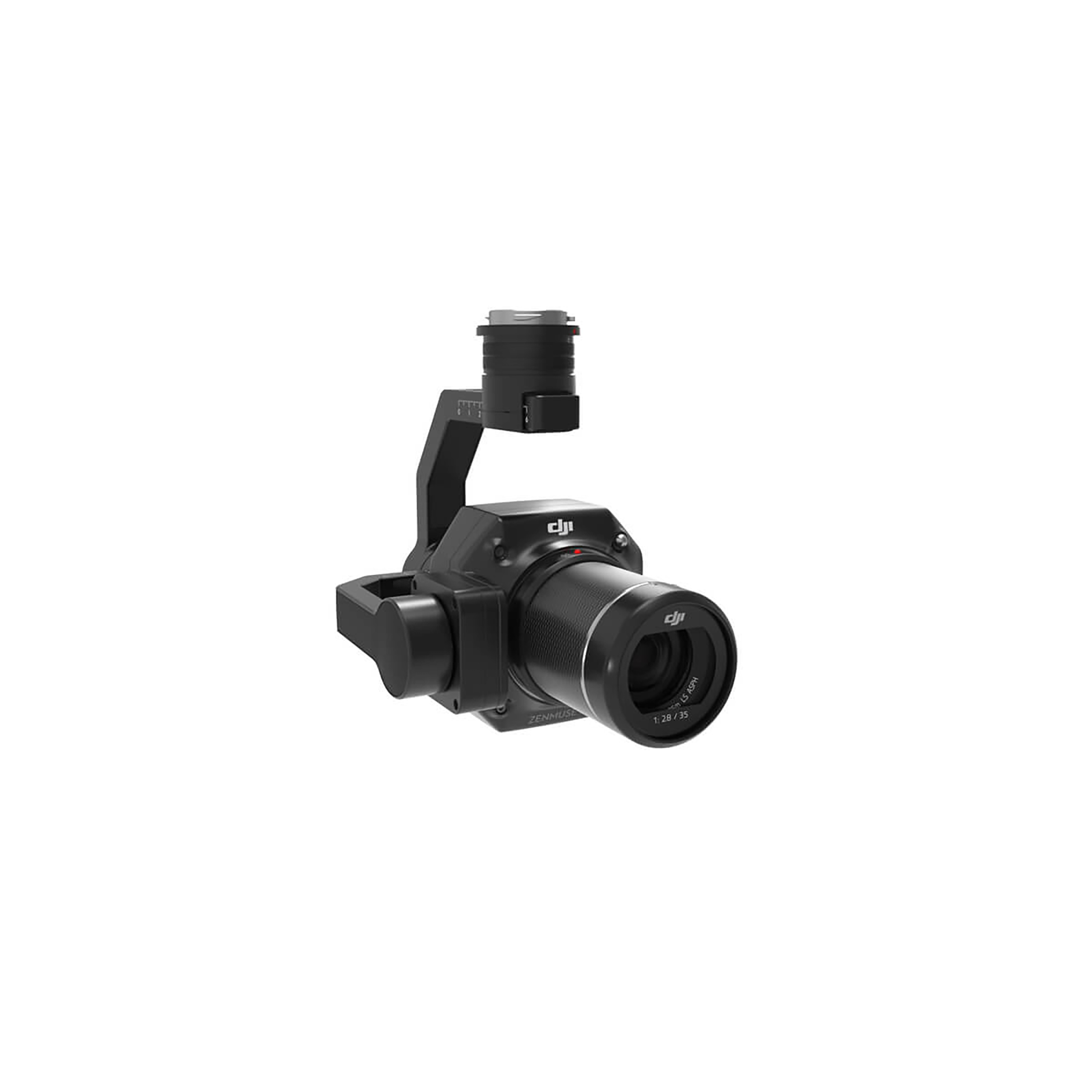

DJI Zenmuse P1

General

Product Name
ZENMUSE P1

Dimensions
198×166×129 mm

Weight
Approx. 800 g

Power
20W

IP Rating
IP4X

Supported Aircraft
Matrice 300 RTK

Operating Temperature Range
-20° to 50° C (-4° to 122° F)

Storage Temperature Range
-20° to 60° C (-4° to 140° F)

Absolute Accuracy
Horizontal: 3 cm, Vertical: 5 cm *
* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

Camera

Sensor
Sensor size (Still): 35.9×24 mm (Full frame)
Sensor size (Max video recording area): 34×19 mm
Effective Pixels: 45MP
Pixel size: 4.4 μm

Supported Lenses
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards
SD: UHS-I rating or above; Max capacity: 512 GB

Storage Files
Photo / GNSS Raw Observation Data/ Image Log File

Photo Size
3:2 (8192×5460)

Operation Modes
Photo, Video, Playback

Minimum photo interval
0.7 s

Shutter Speed
Mechanical Shutter Speed: 1/2000*-1 s
Electronic Shutter Speed: 1/8000-1 s
*Aperature value no larger than f/5.6

Aperture Range
f/2.8-f/16

ISO Range
Photo: 100-25600
Video: 100-25600

Video

Video Format
MP4,MOV

Video Resolution
16:9 (1920×1080)
16:9 (3840×2160)*
*Only 35mm lens supported

Frame Rate
60fps

Gimbal

Stabilized System
3-axis (tilt, roll, pan)

Angular Vibration Range
±0.01°

Mount
Detachable DJI SKYPORT

Mechanical Range
Tilt: -130° to +40°;
Roll: -55° to +55°;
Pan: ±320°
