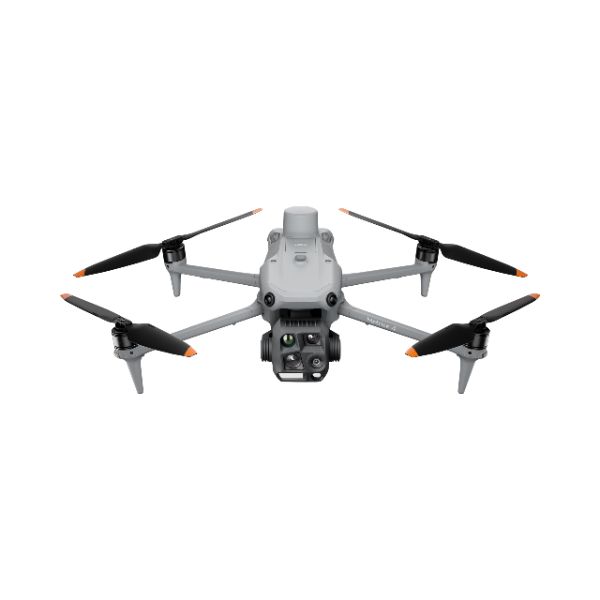

DJI Matrice 4T
Description
The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. A new era in intelligent aerial operations begins now.
Product Details
Additional Information
DJI Matrice 4T
The DJI Matrice 4 series is a new generation of enterprise small intelligent multi-light flagship drone, setting a new
benchmark for intelligent operations.
Intelligent Operation
AI Power for Smarter Operations
The built-in AI model can identify vehicles, vessels, and subjects during search and Rescue operations or routine flights. It also supports switching to other models, enabling the Expansion of AI application scenarios.
Laser Range Finder, Precise Measurement
The laser range finder enables real-time precise measurement. Through simple operations such as point marking, line drawing, and area calculation, it can complete tasks like marking target locations for security purposes or calculate the area of a wildfire.
Observation Range Recording
DJI Pilot 2 supports recording the ground area that has been viewed by the camera and the center position of the frame, and can display the operated area on the map. It is especially suitable for security searches and mountain searches.
Excellent for Low-Light Environments
Night Scene Mode
Supports full-color night vision and IR Cut Filter, combined with nir auxiliary light, easily overcomes the limitations of darkness.
Smart Capture
The Matrice 4 series cameras have larger apertures and intelligent low light capabilities, enhancing operations during dusk and nighttime.
Infrared Illumination
The Matrice 4T features new hardware for NIR illumination, allowing for lighting distances of up to 100 meters.
Thermal Imaging
The Matrice 4T supports infrared super-resolution with up to 1280 × 1024 image resolutions.
Low-Light Fisheye Omnidirectional Sensing
The Matrice 4 series has six high-definition low-light fisheye lenses, enhancing visual low-light positioning and obstacle avoidance capabilities.
Crystal Clear Vision
3x optical telephoto lens
3x optical telephoto lens excels for medium-range inspection tasks. it can identify screws and cracks from a distance of 10 meters and clearly read instrument data at substations.
7x telephoto camera
7x telephoto camera, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away.
Foreground Stabilization
The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or more.
Electronic Dehazing
In environments with fog, haze, or high humidity, Electronic Dehazing can improve the imaging clarity to match different environments and requirements.
Safe Flight, Worry-Free Operation
Integrated Positioning, Return to home safely
The Matrice 4 series features GNSS+Vision Integrated Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds in emergency situations. Even without GNSS signals, it can complete the return-to-home process.
Intelligent Escort, Unobstructed Flight
When the remote controller is connected to the internet, it automatically loads terrain obstacle details and preloads detailed offline maps. The standard configuration includes a 5-directional vision assist view along with a downward vision, which aids in providing comprehensive visibility for enhanced safety.
Achieve New Heights in Image Transmission
The O4 Enterprise image transmission system incorporates an 8-antenna system with adaptive selection on each drone. Paired
with a high-gain receiving antenna integrated into the remote controller, this setup achieves a transmission range exceeding 20
kilometers. Furthermore, the download bandwidth is up tp 20MB/s. Additionally, with an optional DJI Cellular Dongle 2 utilizing 4G image transmission in conjunction with the aircraft's antennas, signal stability is further enhanced.
Accessory Upgrades
Gimbal-Following Spotlight
Supports two modes: always-on and strobe, and illuminates subjects even from a distance of 100 meters. It can also follow the camera's movements, and light up a broader area when in wide angle mode.
Real-Time Voice Speaker
It can reach a volume of 114 decibels at a distance of 1 meter, with a broadcast range of up to 300 meters. It supports recorded messages, media imports, and text-to-speech conversion. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.
DJI RC Plus 2 Enterprise
Equipped with a new high-brightness screen, it remains clearly visible even under direct sunlight. IP54 & -20°C to 50°C. Supports O4 Enterprise image transmission system. It also supports SDR and 4G hybrid transmission solutions
Key specs
Drone
Weight ：1219 g（with normal propellers）
Folded size：length 260.59 mm，width 113.66 mm，height 138.23 mm
Unfolded size：length 307 mm，width 387.5 mm，height 149.43 mm
Max payload：200g
Flight time：49 minutes
Max taking off altitude：6000 m
Max wind resistance：12 m/s
Max horizontal speed：21m/s
Payload
Wide : 1/1.3 CMOS, 48 MP, f/1.7, Equivalent Focal Length：24 mm
3× Zoom: 1/1.3 CMOS, 48MP, f/2.8, Equivalent Focal Length：70 mm
7× Zoom: 1/1.5 CMOS, 48MP, f/2.8, Equivalent Focal Length：168 mm
Infrared Thermal Camera:
Resolution 640 × 512, f/1.0, Equivalent Focal Length：53 mm， uncooled
vanadium oxide, Support for Super-Resolution Mode
NIR Auxilary Light: FOV: 6°， Illumination Distance：100 m
Laser Range Finder:
Measurement Range: 1800 m (1 Hz); Oblique Incidence Range(1:5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m; Range Accuracy: 0.2 + 0.005 × D (m)
