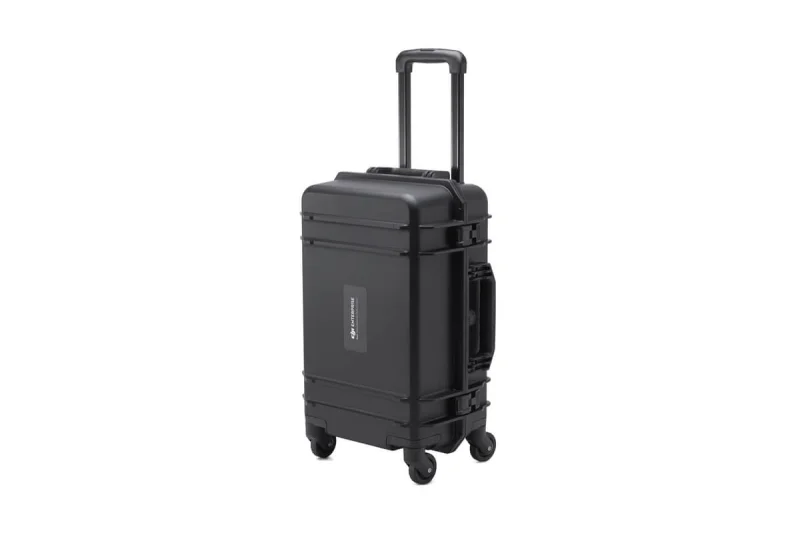

DJI Matrice 350 - BS65 Battery Station

The battery station is a one-stop solution for battery charging, storage, and transport. The new Storage Mode and Ready-to-Fly Mode improve charging efficiency and extend the battery life. The new 360°-movement wheels facilitate more convenient transportation and transitions. The battery station provides eight TB65 battery ports, four WB37 battery ports, one USB-C maintenance port, one USB-C charging port, and one USB-A charging port. It can charge up to two TB65 batteries and one WB37 battery simultaneously.

Multiple Charging Modes
In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life.

Intelligent Management
When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.

Effortless Transitions
The battery station is designed with 360°-movement wheels for more convenient transportation and transitions.


Tips
1. DO NOT close the cover of the battery station when charging.
2. DO NOT attempt to touch the metal terminals on the battery ports.

Specs
Dimensions: 580×358×254 mm (L×W×H)
Net Weight: Approx. 9.03 kg
Output Power: 100-120 V (AC), 750 W; 220-240 V (AC), 992 W
USB-C Charging Port: 65W max output power
Operating Temperature: -20° to 40° C (-4° to 104° F)

Compatibility
Matrice 350 RTK
