DJI FlyCart 30

DJI FlyCart 30

DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.

Heavy Payloads, Long Distances

• 30 kg Max Payload
• 28 km Flight Distance Without Payload
• 16 km Flight Distance with Full Payload
• 20 m/s Max Speed
  The first three indicators are measured in dual battery mode

Built for Extremes

• 6,000 m Max Flight Altitude
• -20° to 45° C (-4° to 113° F) Operating Temperature
• 12 m/s Max Wind Speed Resistance

Strong Signal

• 20 km Video Transmission with O3
• 4G Enhanced Video Transmission
• Dual Operator Mode
• High-Resolution FPV Gimbal Camera

Advanced Safety and Intelligence

• IP55 Protection and Corrosion Resistance
• Radars, Binocular Vision, Intelligent Obstacle Sensing
• Dual Batteries and Parachute

Convenient Configurations

• Foldable
• 70 L EPP Case
• Winch System

Fully-Automatic Operations

• DJI Pilot 2
• DJI DeliveryHub
• Health Management System

Designed to Deliver
Send What's Needed, Where It's Needed
Heavy payload capacity and long flight distance overcome logistical limitations fornext-generation delivery.

• 30 kg Max Payload (Dual Batteries)
• 40 kg Max Payload (Single Battery)
• 28 km Max Flight Distance Without Payload (Dual Batteries)
• 16 km Max Flight Distance with Full Payload (Dual Batteries)
• 20 m/s Max Flight Speed (with Carbon Fiber Propellers)
• 15 m/s Cruising Speed

All-Weather Performance
Withstand round-the-clock operations across extreme altitudes and weather conditions.

• 6,000 m Max Flight Altitude
• -20° to 45° C (-4° to 113° F) Operating Temperature
• IP55 Protection Rating
• 12 m/s Max Wind Speed Resistance

Deliver With Safety and Reliability
Ensured safety from takeoff to landing.

Alternate Landing Site Settings
Set multiple alternate landing sites for safe landing in case of an emergency.

Takeoff and Landing Protection
Multiple features assure safe takeoff and landing, including sound and light prompts, a 6s delay of propeller rotation, and secondary confirmation of landing. Integrate an RTK module to achieve centimeter-level positioning to further improve takeoff and landing safety.

Integrated Parachute
In case of an emergency, the integrated parachute can open in low altitude and land the drone stably, reducing risk to people and property. The parachute has its own self-check upon startup, an independent power supply, sound and light alerts, and propellers stop rotation before opening.

Intelligent Obstacle Sensing
DJI FlyCart 30 is equipped with Front and Rear Phased Array Radars and a dual Binocular Vision system to achieve Intelligent Multidirectional Obstacle Sensing. A built-in ADS-B signal receiver detects and warns of nearby crewed aircraft.

Multi-Level Redundancy
DJI FlyCart 30 is designed with high redundancy to guarantee flight safety even in harsh environments.
Powered by a dual battery system, if a single battery fails during flight, the other battery will keep the drone flying and ensure a safe return.

Strong Signal, Stable Transmission
DJI FlyCart 30 supports DJI O3 video transmission over up to 20 km.
Its four-antenna transceiver system intelligently selects the optimal antenna to transmit signals and enhance anti-interference capabilities. Bolster connection and stability with a DJI Cellular Dongle which can work in tandem with DJI O3 video transmission. If O3 video transmission experiences interferrence, the 4G network can maintain signal stability and video transmission, improving flight safety even in complex environments.

Smooth Effortless Control
DJI RC Plus has a 7-inch high-bright screen and supports Dual Operator mode. This mode allows two operators to conveniently transfer control permissions to meet diverse operation requirements.

Built Ready for Harsh Environments

• IP54 Protection / Water and dust resistant
• -20° to 50° C (-4° to 122° F) / Capable in extreme Environments

Stable Video Transmission and Long Battery Life

20 km Four-Antenna O3 Video Transmission
Intelligently selects the optimal antenna to transmit signals for more stable video transmission.

4G Enhanced Video Transmission
The remote controller can connect to Wi-Fi or connect to a mobile network by using a DJI Cellular Dongle to achieve 4G enhanced video transmission.

6-Hour Long Battery Life
Internal and external battery configuration powers the controller for 6 hours and enables hot-swapping for seamless, uninterrupted flight Operations.

Choose Your Payload Configuration
Cargo mode or Winch mode facilitate payload delivery depending on its destination.

Cargo Mode: Streamlined and Steady

• 70 L Max Capacity
• 30 kg Max Payload (Dual Batteries)
• 40 kg Max Payload (Single Battery)

DJI FlyCart 30 comes standard with an EPP case that supports easy loading and unloading.
Weight and center-of-gravity detection ensures balanced cargo loading for safe and stable flight.

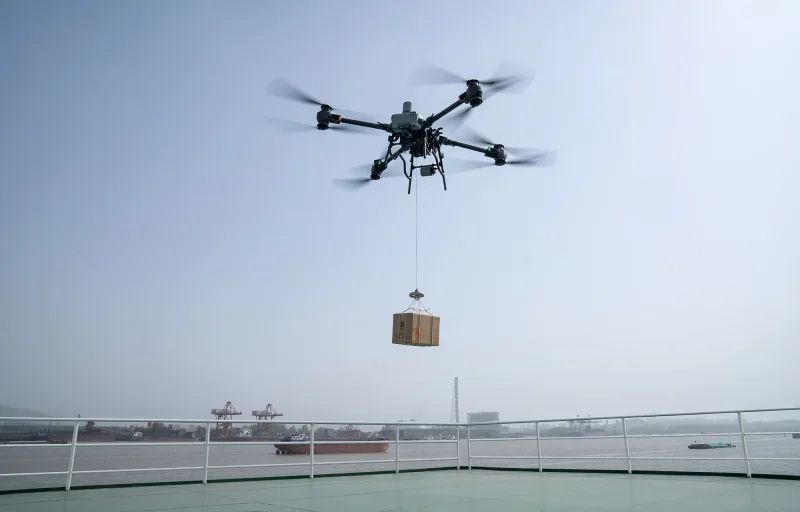

Winch Mode: Flexible and Precise

• 30 kg Max Payload (Dual Batteries)
• 40 kg Max Payload (Single Battery)
• 0.8 m/s Max Cable Speed
• 20 m Max Cable Length

*Winch System Kit is sold separately

Winched cargo is delivered by a retractable cable which can be controlled either manually or automatically. Cargo releases automatically upon touchdown and does not require manual detachment, ensuring safe and precise delivery.

DJI FlyCart 30 can intelligently adjust its attitude to minimize cargo swing and improve stability. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the winch cable, freeing the drone.

One-Stop Solution for Drone Delivery
DJI Pilot 2 and DJI DeliveryHub provide a powerful, efficient, and flexible one-stop solution for drone delivery management.

Simplified Delivery at Your Fingertips
DJI Pilot 2 displays real-time flight status, cargo status, and other interactive interfaces for efficient and safe operation with DJI FlyCart 30.

Real-Time Flight Safety Alerts
Check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety.

Intelligent Assistance for Elevated Efficiency

Delivery Mode
DJI Pilot 2 can visually display cargo status and intelligently control the winch system for efficient delivery.

Cruise Control
During long-distance and stable flights, Cruise Control can help mitigate pilot fatigue.

Real-Time Terrain Sensing
The elevation profile shows you the terrain changes and surrounding environment in real time.

AR Projection
AR Projection assists in precise landing and cargo dropoff.

Route Recording
Flight routes can be recorded and automatically reflown.

Collaborate Across Multiple Terminals
DJI DeliveryHub is a one-stop air delivery management platform. It facilitates efficient operation planning, comprehensive operation status monitoring, centralized team resource management, and data collection and analysis.

Task Planning and Execution
Remotely create, schedule, and allocate tasks and devices. Confirm safety check and one-tap takeoff.
Increase efficiency and automatically perform scheduled delivery tasks based on recorded flight routes.

Comprehensive Status Monitoring
Track drones and task status on a 2.5D Base Map.
Live view directly from the drone's high resolution FPV gimbal camera to see the surrounding flight environment.
Receive alerts for abnormalities and take manual control to ensure flight safety.
Collaborate with teammates and share status notifications to multiple terminals.

Centralized Team Resource Management
Plan complex flight routes quickly based on a 2.5D Base Map.
Manage marked locations and alternate landing sites for efficient team collaboration and coordination.
Monitor drone health status, maintenance information, and DJI Care status.
View drone, route, and time statistics to evaluate efficiency and optimize future Operations.
