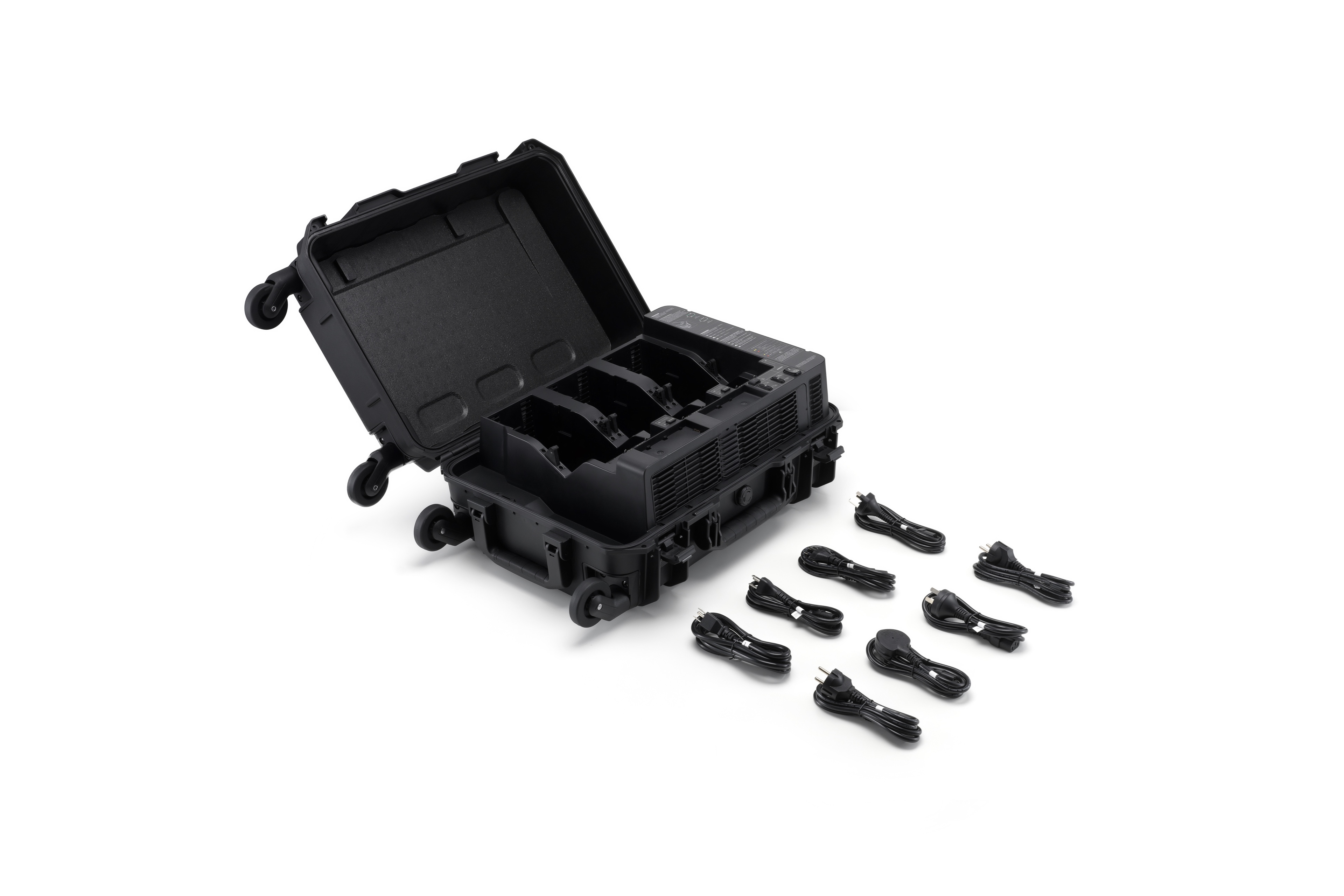

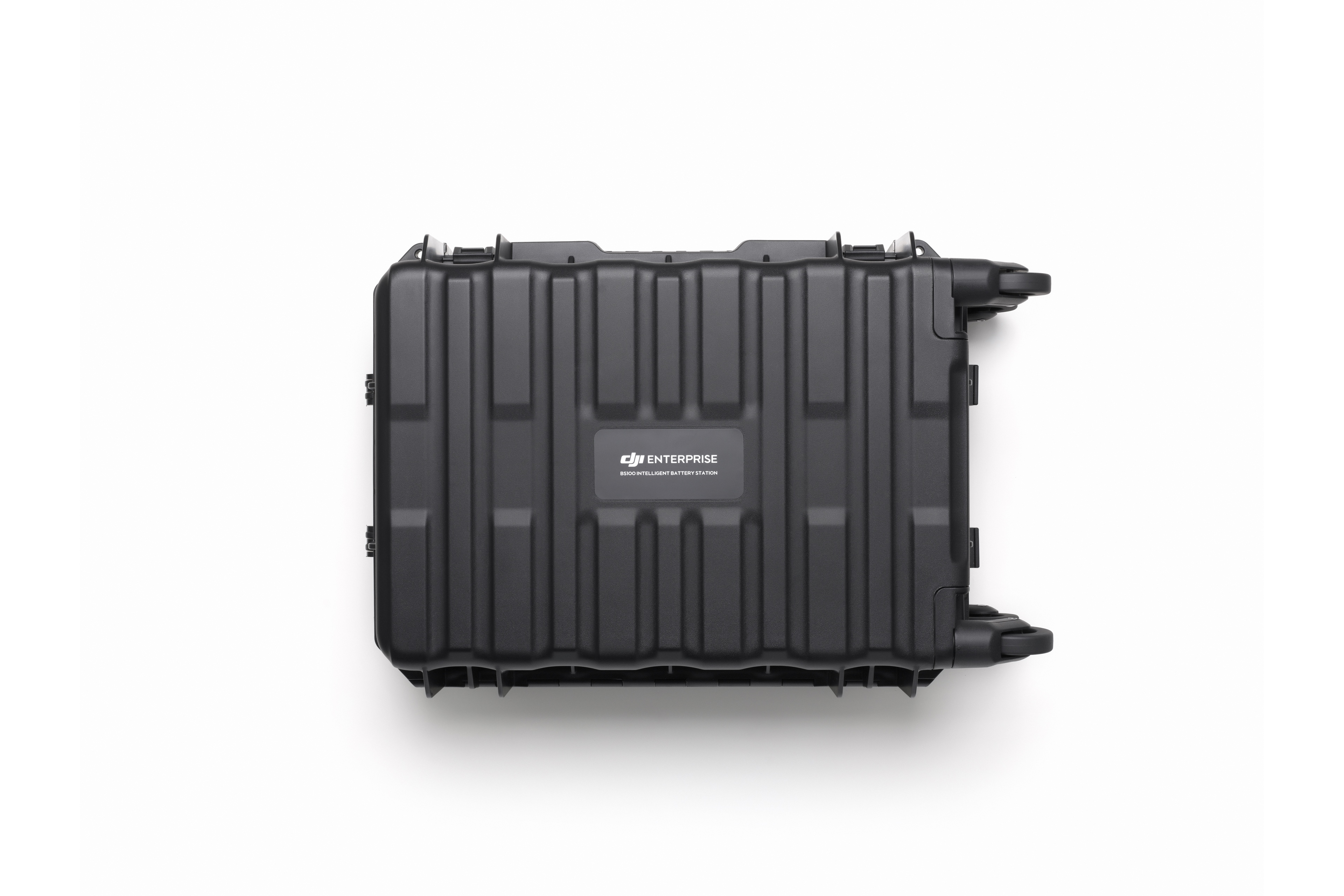

DJI BS100 Intelligent Battery Station

The intelligent battery station is a one-stop solution for battery charging, storage, and transport. Supports Ready-to-Fly Mode with 90% recharge, Standard Mode with 100% recharge, as well as Fast Charging Mode and Silent Mode to extend battery lifespan. The new 360°-movement wheels facilitate more convenient transportation and transitions. The battery station provides three TB100 battery ports, two WB37 battery ports, and one USB-C charging port. It can charge one TB100 battery and one WB37 battery simultaneously.

1. Do not close the battery station while recharging.

2. DO NOT attempt to touch the metal terminals on the battery ports.



Dimensions: 605 × 410 × 250 mm (L×W×H)

Empty Weight: Approximately 11.8 kg

Output Power:

TB100 Battery Port:

100 V to 110 V: Approximately 1185 W

110 V to 180 V: Approximately 1474 W

180 V to 240 V: Approximately 2184 W

WB37 Battery Port:

100 V to 240 V: Approximately 52 W

USB-C:

5.0 V 3.0 A/9.0 V 3.0 A/12.0 V 3.0 A/15.0 V 3.0 A/20.0 V 3.25 A, up to 65 W output power

Operating Temperature:-20° to 40° C (-4° to 122° F)
