Features one SDC output port and one USB-C output port, suitable for charging compatible charging hubs, remote controllers, or other mobile devices that can be charged via USB-C port.
1. DO NOT attempt to touch the metal terminals on the battery ports.
2. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.
3. The charger specifications may vary depending on the region of purchase; please refer to the plug specifications at the time of purchase.

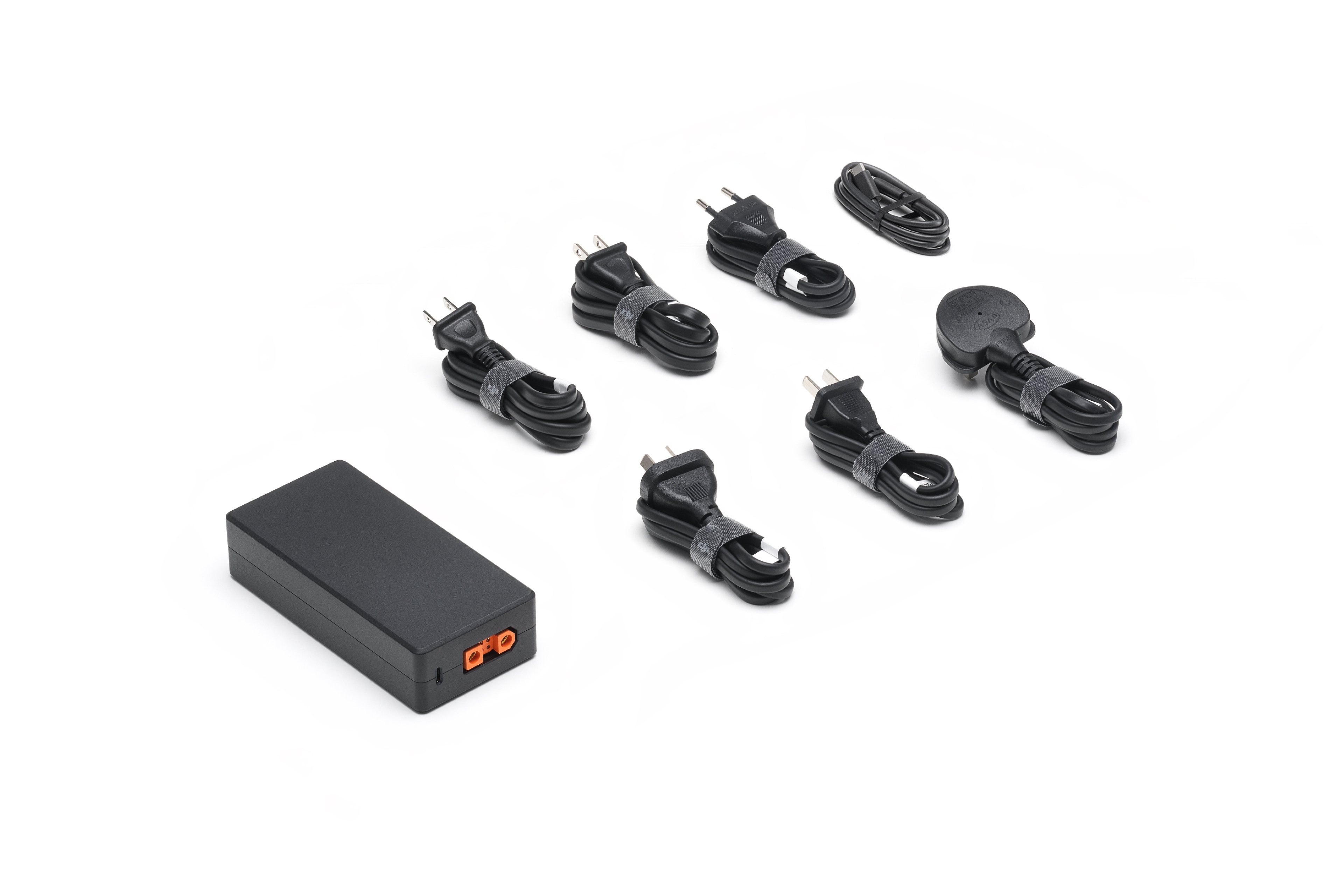

* The plug type and quantity of the included AC cable may vary by country or region. Refer to the actual product you receive.
Product Model: CDX230-240
Input Voltage: 100-240 V (AC), 50-60 Hz, max 3 A
Output Power: Max 240 W (total), Max 65 W (USB-C)*
Operating Temperature: 5° to 35° C (41° to 95° F)
Charging Time*:
DJI Matrice 4D Series Battery: charging one battery from 15% to 90% takes only 30 minutes
* When both charging ports are used simultaneously, the USB-C port's maximum output power is 45 W. Charging time may be slightly extended.
DJI Matrice 4D Series
DJI Matrice 4 Series*
* Requires use with the DJI Matrice 4 Series Charging Hub (200W).
